Guide support/spring pad/attaching parts for BMW 5 Series E34 525td (1995)

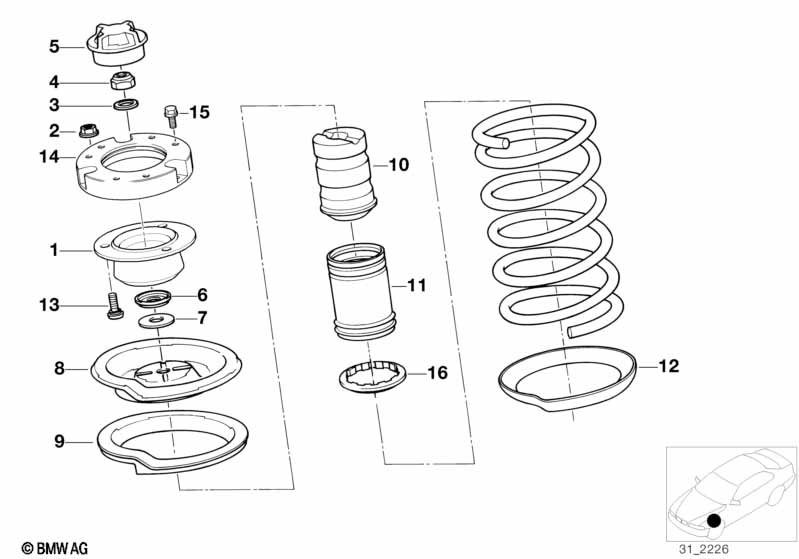

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide support | 2 | 09/1992 | 31331139452 | $88.77 | Shop at ECS Tuning | ||||
| 01 | Guide support camber correction | +/- 30MIN. | 2 | 09/1992 | 31331139484 | $221.88 | Shop at ECS Tuning | |||
| 02 | Self-locking collar nut | M8-8-ZNS3 | 6 | 09/1992 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 6 | 09/1992 | 07119905374 | Shop at ECS Tuning | ||||
| 03 | Washer | A15 ZNS3 | 2 | 09/1992 | 07119905829 | $0.74 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M14X1.5-8-ZN | 2 | 09/1992 | 31321139422 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering cap | D=32MM | 2 | 09/1992 | 31311139453 | $1.48 | Shop at ECS Tuning | |||
| 06 | Dust protection collar | 2 | 09/1992 | 31331110196 | $1.84 | Shop at ECS Tuning | ||||
| 07 | Washer | 37X2,5MM ZNS3 | 2 | 09/1992 | 31336776760 | $0.87 | Shop at ECS Tuning | |||
| 08 | Upper spring plate | 2 | 09/1992 | 31331128524 | $9.02 | Shop at ECS Tuning | ||||
| 09 | Spring pad upper | 3MM | 2 | 09/1992 | 31331128523 | $4.52 | Shop at ECS Tuning | |||
| 10 | Additional shock absorber, front | 2 | 09/1992 | 31331124449 | $19.12 | Shop at ECS Tuning | ||||
| 11 | Protection tube | 2 | 09/1992 | 31331134314 | $2.25 | Shop at ECS Tuning | ||||
| For vehicles with National version eastern europe |
L816A=Yes |
|||||||||
| 11 | Rubber boot | 2 | 09/1992 | 31321125878 | $12.62 | Shop at ECS Tuning | ||||
| 12 | Spring pad lower | 3MM | 2 | 09/1992 | 31331124322 | $4.47 | Shop at ECS Tuning | |||
| 13 | Pin | M8X18 ZNS3 | 6 | 09/1992 | 31336765744 | $1.17 | Shop at ECS Tuning | |||
| For vehicles with National version eastern europe |
L816A=Yes |
|||||||||
| 14 | Adapter | 2 | 09/1992 | 31331091595 | $74.81 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X20-Z1-10.9 | 6 | 07119904143 | Shop at ECS Tuning | |||||
| 16 | Ring | 2 | 09/1992 | 31311132625 | $3.02 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
