Motorsport chassis spring strut for BMW 3 Series E36 320i (1995)

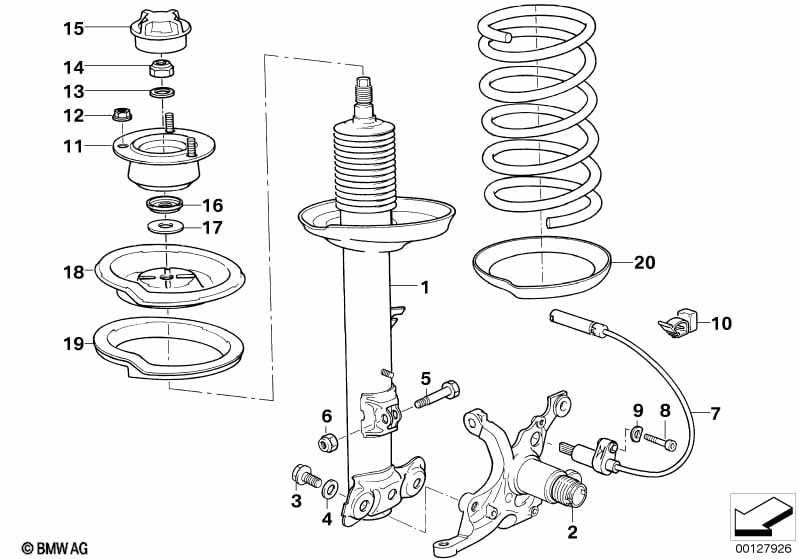

This Motorsport chassis spring strut technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ALSO IN CONJUNCTION WITH INDIVIDUAL SERIES AVUS |
|||||||||
| 01 | Left front spring strut | BILSTEIN | 1 | 06/1992 | 31312227485 | $282.98 | +core | Shop at ECS Tuning | ||
| Required for repair | ||||||||||
| 01 | Front right spring strut | BILSTEIN | 1 | 06/1992 | 31312227486 | $282.98 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M12X20 | 2 | 06/1992 | 31311136465 | $1.17 | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M14X1.5-8-ZN | 1 | 06/1992 | 31321139422 | $1.12 | ENDED | Shop at ECS Tuning | ||
| -- | Self-locking hex nut | M12-10-ZNS3 | 1 | 06/1992 | 07119905753 | $1.64 | Shop at ECS Tuning | |||
| -- | Fit bolt | M12X42 | 1 | 06/1992 | 07119905853 | $2.69 | Shop at ECS Tuning | |||
| 02 | King pin left | 1 | 06/1992 | 31211092079 | $172.28 | Shop at ECS Tuning | ||||
| 02 | King pin right | 1 | 06/1992 | 31211092080 | $172.28 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M12X20 | 4 | 06/1992 | 31311136465 | $1.17 | Shop at ECS Tuning | |||
| 04 | Washer | A13/HV-ZNS | 2 | 06/1992 | 04/1999 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | |
| 04 | Washer | 12-300 HV-ZNS3 | 2 | 06/1992 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 05 | Fit bolt | M12X42 | 2 | 06/1992 | 07119905853 | $2.69 | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M12-10-ZNS3 | 2 | 06/1992 | 07119905753 | $1.64 | Shop at ECS Tuning | |||
| 07 | Pulse generator, ABS | 2 | 06/1992 | 34521163027 | $133.58 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X30-8.8-ZNNIV | 2 | 06/1992 | 07129905386 | $0.86 | Shop at ECS Tuning | |||
| 09 | Spring washer Black | B6-ZN | 2 | 06/1992 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 09 | Washer | 5.3-140 HV-ZNS | 2 | 06/1992 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 10 | Cable holder | 2 | 06/1992 | 33181181310 | $1.23 | Shop at ECS Tuning | ||||
| 11 | Guide support | 2 | 06/1992 | 31336779613 | $51.22 | Shop at ECS Tuning | ||||
| 12 | Self-locking collar nut | M8-10 ZNS3 | 6 | 06/1992 | 07119905374 | Shop at ECS Tuning | ||||
| 13 | Washer | A15 ZNS3 | 2 | 06/1992 | 07119905829 | $0.74 | Shop at ECS Tuning | |||
| 14 | Self-locking hex nut | M14X1.5-8-ZN | 2 | 06/1992 | 31321139422 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 15 | Covering cap | D=32MM | 2 | 06/1992 | 31311139453 | $1.48 | Shop at ECS Tuning | |||
| 16 | Dust protection collar | 2 | 06/1992 | 31331110196 | $1.84 | Shop at ECS Tuning | ||||
| 17 | Washer | 37X2,5MM ZNS3 | 2 | 06/1992 | 31336776760 | $0.87 | Shop at ECS Tuning | |||
| 18 | Upper spring plate | 2 | 06/1992 | 31331135580 | $9.20 | Shop at ECS Tuning | ||||
| 19 | Spring pad upper | 3MM | 2 | 06/1992 | 31331128523 | $4.52 | Shop at ECS Tuning | |||
| 20 | Spring pad lower | 2 | 06/1992 | 31331090479 | $3.08 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
