Guide support/spring pad/attaching parts for BMW 7 Series E38 728i (2001)

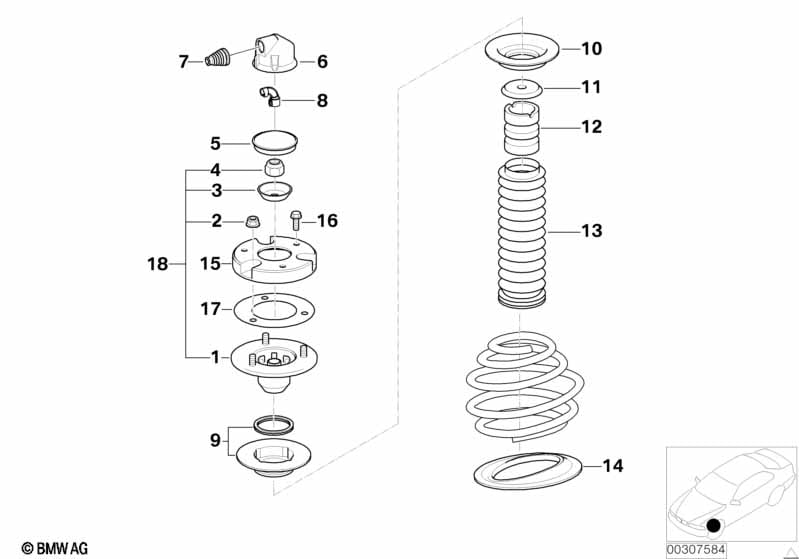

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide support | 2 | 31331090611 | $125.53 | Shop at ECS Tuning | |||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Plate | 2 | 31331096068 | $1.28 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Protection cap | 2 | 31331090616 | $2.91 | Shop at ECS Tuning | |||||
| For vehicles with Electronic Damper Control (EDC) |
S223A=Yes |
|||||||||
| 06 | Protection cap | 2 | 31321090890 | $7.95 | Shop at ECS Tuning | |||||
| 07 | Grommet | 2 | 31321090623 | $2.24 | Shop at ECS Tuning | |||||
| 08 | Tubing guide | 2 | 31321090618 | $4.01 | Shop at ECS Tuning | |||||
| 09 | Upper spring pocket w/axial cage bearing | 2 | 31331090612 | $11.70 | Shop at ECS Tuning | |||||
| 10 | Spring pad upper | 2 | 31331091233 | $5.85 | Shop at ECS Tuning | |||||
| 11 | Support | 2 | 31321139423 | $5.03 | Shop at ECS Tuning | |||||
| For vehicles with Electronic Damper Control (EDC) |
S223A=Yes |
|||||||||
| 11 | Support | 2 | 31332283038 | $1.59 | Shop at ECS Tuning | |||||
| 12 | Additional shock absorber, front | 2 | 31331124449 | $19.12 | Shop at ECS Tuning | |||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 12 | Additional shock absorber, front | 2 | 09/1998 | 31332226674 | $22.35 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
S223A=Yes |
|||||||||
| 12 | Additional shock absorber, front | 2 | 08/1997 | 31331091030 | $20.05 | Shop at ECS Tuning | ||||
| For vehicles with National version eastern europe or Poor road package |
L816A=Yes S815A=Yes |
|||||||||
| 12 | Additional shock absorber, front | 2 | 31331140140 | $22.35 | Shop at ECS Tuning | |||||
| 13 | Rubber boot | 2 | 31331091235 | $8.47 | Shop at ECS Tuning | |||||
| 14 | Spring pad lower | 2 | 31331094795 | $6.38 | Shop at ECS Tuning | |||||
| For vehicles with National version eastern europe or Poor road package |
L816A=Yes S815A=Yes |
|||||||||
| 15 | Adapter | 2 | 31331091858 | $74.81 | +core | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20-Z1-10.9 | 6 | 07119904143 | Shop at ECS Tuning | |||||
| 17 | Washer-gasket | 2 | 31331094288 | $3.18 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728i Guide support/spring pad/attaching parts?
- This technical diagram illustrates the Guide support/spring pad/attaching parts within the Front Axle group for the 7 Series E38 728i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Guide support (Part #31331090611).
- Which models use the hardware listed in this Guide support/spring pad/attaching parts?
- The hardware and components featured in the Guide support/spring pad/attaching parts are specific to the 7 Series E38 728i produced during 2001. These technical specifications ensure that parts like the Guide support (31331090611) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Guide support/spring pad/attaching parts assembly?
- Each item in the Guide support/spring pad/attaching parts corresponds to the numbered list below the illustration. For the 7 Series E38 728i, you can identify the Guide support by locating its position on the schematic, which then links to the official BMW part number 31331090611 for the Front Axle section.
