Wheel bearing for BMW 7 Series E38 740i (1996)

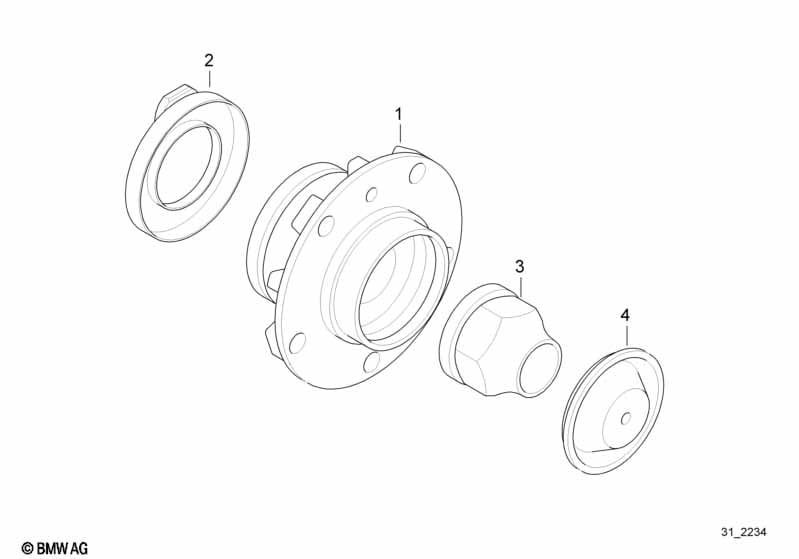

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub with bearing, front | 2 | 31221092519 | $211.75 | Shop at ECS Tuning | |||||
| 02 | Cup | 2 | 31211141906 | $3.63 | Shop at ECS Tuning | |||||
| 03 | Collar nut | 2 | 31211128336 | $7.48 | Shop at ECS Tuning | |||||
| 04 | Cap | 2 | 31206777789 | $3.02 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Wheel bearing?
- This technical diagram illustrates the Wheel bearing within the Front Axle group for the 7 Series E38 740i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Wheel hub with bearing, front (Part #31221092519).
- Which models use the hardware listed in this Wheel bearing?
- The hardware and components featured in the Wheel bearing are specific to the 7 Series E38 740i produced during 1996. These technical specifications ensure that parts like the Wheel hub with bearing, front (31221092519) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel bearing assembly?
- Each item in the Wheel bearing corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Wheel hub with bearing, front by locating its position on the schematic, which then links to the official BMW part number 31221092519 for the Front Axle section.
