Front axle support/wishbone for BMW 7 Series E38 728iL (1998)

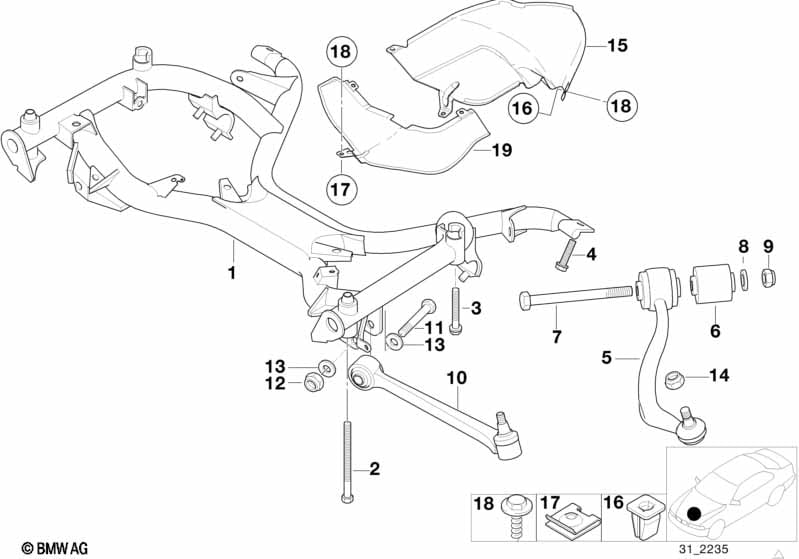

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31111092323 | $1249.62 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M12X1,5X132 | 2 | 07119900223 | $2.35 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M12X1,5X130-8.8 | 2 | 07119906978 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M12X1,5X68 | 2 | 31101093405 | $1.91 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M12X1,5X47-Z1 | 2 | 07119900388 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Lft traction strut without rubb.mounting | 1 | 31121141721 | $179.56 | Shop at ECS Tuning | |||||
| 05 | Rght traction.strut without rubb.mountng | 1 | 31121141722 | $179.56 | Shop at ECS Tuning | |||||
| 06 | Set rubber mounting f traction strut | 1 | 31120006482 | $69.97 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M14X1,5X150 | 2 | 07119900224 | $3.51 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 10 | Wishbone, left | 1 | 31121142087 | $216.33 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 10 | Wishbone, right | 1 | 31121142088 | $216.33 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Washer | 12,4X25X3MM | 2 | 31111113513 | $0.67 | ENDED | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M14X1,5 05 ZNS3 | 1 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M12X1,5X80 | 1 | 07119914660 | $2.09 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M12X1,5X80 | 2 | 07119914660 | $2.09 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M14X1,5 05 ZNS3 | 4 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| 15 | Heat Protection Plate Right | 1 | 32211141462 | $21.78 | Shop at ECS Tuning | |||||
| 16 | Expanding nut | 2 | 52531451393 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| 17 | Body nut | ST4,8-11-ZN | 2 | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 18 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Heat Protection Plate Right | 1 | 31141093333 | ENDED | Shop at ECS Tuning | |||||
