Upper fork cross brace for BMW R50/5-R90S 69-76 R90S (1976)

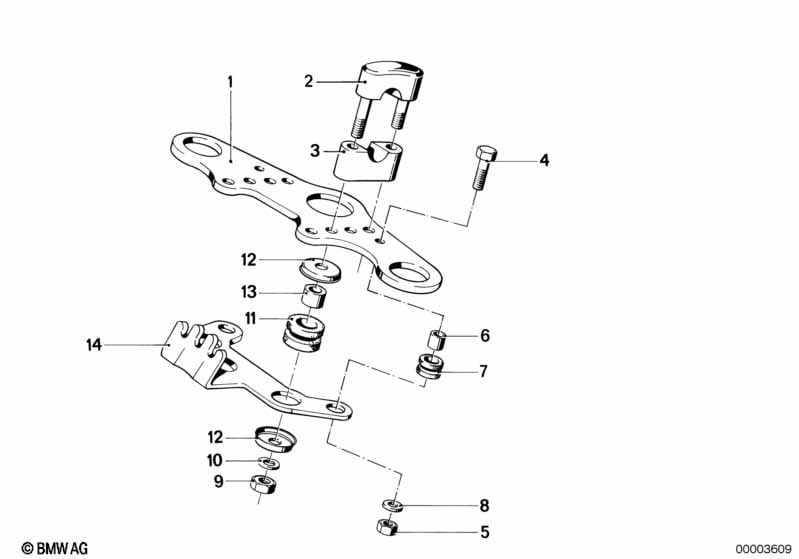

This Upper fork cross brace technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper fork cross brace | 1 | 31421232512 | $40.37 | +core | Shop at ECS Tuning | ||||
| 02 | Clamp support, black, upper | 2 | 32711235879 | $108.91 | Shop at ECS Tuning | |||||
| 03 | Clamp support, black, lower | 2 | 32711232926 | $101.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hexagon bolt black | M6X28-8.8-ZN | 2 | 31421240053 | $2.58 | Shop at ECS Tuning | ||||
| 05 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Bush | 2 | 31421232242 | $2.49 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 8X18X12MM | 2 | 62217670749 | $2.11 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNS3 | 4 | 01/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 09 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Rubber grommet | 2 | 31421232245 | $1.87 | Shop at ECS Tuning | |||||
| 12 | Cap | 4 | 31421232243 | $1.96 | Shop at ECS Tuning | |||||
| 13 | Bush | 2 | 31421232241 | $8.95 | ENDED | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 31421232240 | $35.11 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
