Fork bridge for BMW R 80 GS, R 100 GS, PD (87-90) GS

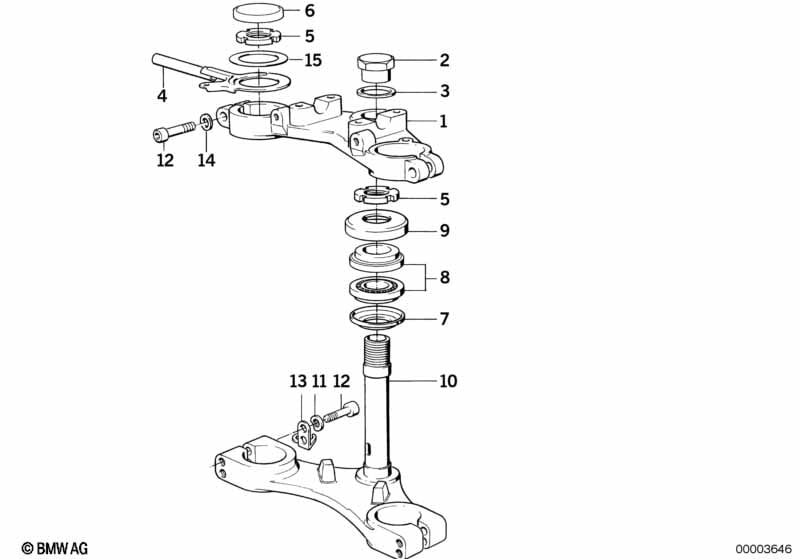

This Fork bridge technical drawing provides a detailed breakdown of the assembly for the R 80 GS, R 100 GS, PD (87-90) GS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper fork cross brace | 1 | 31421457828 | $422.35 | +core | Shop at ECS Tuning | ||||
| 02 | Screw | 1 | 31421457859 | $34.46 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 1 | 31421457860 | $8.22 | ENDED | Shop at ECS Tuning | ||||
| 04 | Turn indicator holder, black, left | D=31.5MM | 1 | 31421244561 | $31.78 | +core | Shop at ECS Tuning | |||
| 04 | Turn indicator holder, black, right | D=31.5MM | 1 | 31421244562 | $31.78 | +core | Shop at ECS Tuning | |||
| 05 | Nut | M28X1.5 | 3 | 31421232343 | $16.73 | Shop at ECS Tuning | ||||
| 06 | Cap | 2 | 31421458081 | $2.58 | Shop at ECS Tuning | |||||
| 07 | Ring | 2 | 31421234509 | $3.03 | Shop at ECS Tuning | |||||
| 08 | Tapered roller bearing | 28X52X16 | 2 | 31427663941 | $68.65 | +core | Shop at ECS Tuning | |||
| 09 | Protection cap | 1 | 31422000312 | $17.95 | Shop at ECS Tuning | |||||
| 10 | Lower fork cross brace | 1 | 31421458104 | $566.86 | +core | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4 | 4 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 12 | ISA screw | M8X55-8.8-ZNNIV | 4 | 07129906694 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | 1 | 31421457233 | $4.93 | ENDED | Shop at ECS Tuning | ||||
| 14 | Washer | 2 | 31422310341 | $0.84 | Shop at ECS Tuning | |||||
| 15 | Shim | 28X40X0.3 | 2 | 07119932672 | $1.13 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R 80 GS, R 100 GS, PD (87-90) GS Fork bridge?
- This technical diagram illustrates the Fork bridge within the Front axle, front suspension group for the R 80 GS, R 100 GS, PD (87-90) GS. It provides a detailed exploded view of the components, identifying key parts such as the Upper fork cross brace (Part #31421457828).
- Which models use the hardware listed in this Fork bridge?
- The hardware and components featured in the Fork bridge are specific to the R 80 GS, R 100 GS, PD (87-90) GS. These technical specifications ensure that parts like the Upper fork cross brace (31421457828) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fork bridge assembly?
- Each item in the Fork bridge corresponds to the numbered list below the illustration. For the R 80 GS, R 100 GS, PD (87-90) GS, you can identify the Upper fork cross brace by locating its position on the schematic, which then links to the official BMW part number 31421457828 for the Front axle, front suspension section.
