Stanchion for BMW R 80 GS, R 100 GS, PD (87-90) GS

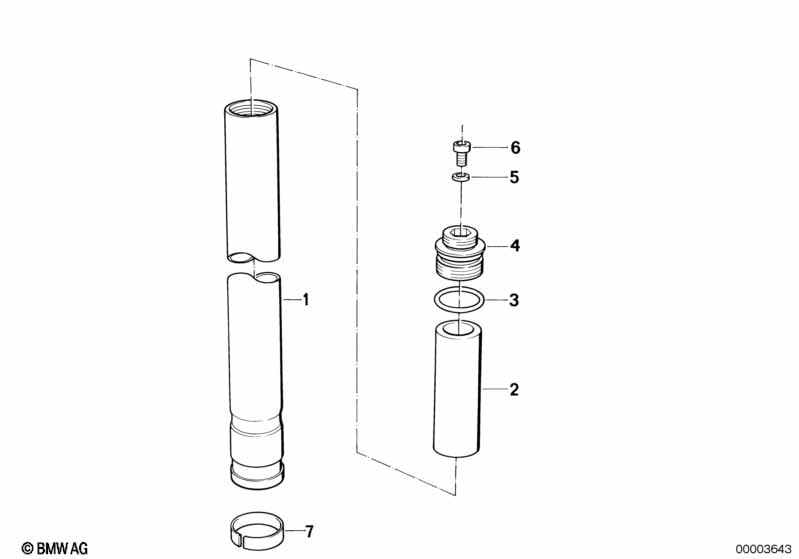

This Stanchion technical drawing provides a detailed breakdown of the assembly for the R 80 GS, R 100 GS, PD (87-90) GS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stanchion | 2 | 31421457853 | $398.95 | +core | Shop at ECS Tuning | ||||
| 02 | Spacer tube | L=159MM | 2 | 31421458056 | $12.20 | ENDED | Shop at ECS Tuning | |||
| 03 | O-ring | 2 | 31421458075 | $2.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring retainer | 2 | 31421457858 | $46.70 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A10X13.5-AL | 2 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M10X20-8.8-ZNS | 2 | 07119901039 | $1.04 | Shop at ECS Tuning | ||||
| 07 | Bush | 2 | 31421458077 | $38.26 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R 80 GS, R 100 GS, PD (87-90) GS Stanchion?
- This technical diagram illustrates the Stanchion within the Front axle, front suspension group for the R 80 GS, R 100 GS, PD (87-90) GS. It provides a detailed exploded view of the components, identifying key parts such as the Stanchion (Part #31421457853).
- Which models use the hardware listed in this Stanchion?
- The hardware and components featured in the Stanchion are specific to the R 80 GS, R 100 GS, PD (87-90) GS. These technical specifications ensure that parts like the Stanchion (31421457853) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stanchion assembly?
- Each item in the Stanchion corresponds to the numbered list below the illustration. For the R 80 GS, R 100 GS, PD (87-90) GS, you can identify the Stanchion by locating its position on the schematic, which then links to the official BMW part number 31421457853 for the Front axle, front suspension section.
