Absorber for BMW R 80 GS, R 100 GS, PD (87-90) GS

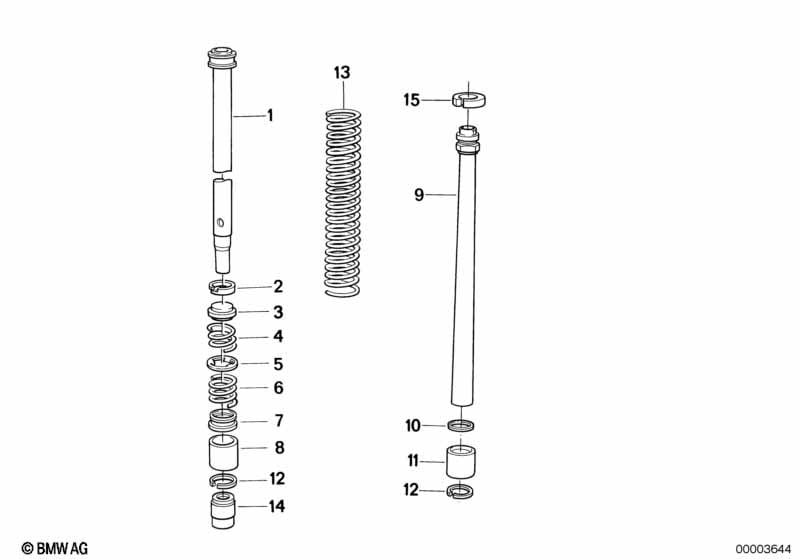

This Absorber technical drawing provides a detailed breakdown of the assembly for the R 80 GS, R 100 GS, PD (87-90) GS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe right | 1 | 31421457863 | $109.56 | Shop at ECS Tuning | |||||
| 02 | Ring | 1 | 31421458059 | $4.61 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide ring | 1 | 31422311095 | $13.22 | Shop at ECS Tuning | |||||
| 04 | Compression spring | 2 | 31421458060 | $7.12 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spring retainer | 1 | 31421458100 | $5.47 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 31421458106 | $4.61 | Shop at ECS Tuning | |||||
| 07 | Valve washer | 1 | 31421458057 | $15.90 | Shop at ECS Tuning | |||||
| 08 | Valve housing, left | 1 | 31421457857 | $23.03 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pipe left | 1 | 31421457854 | $109.56 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Valve washer | 1 | 31421458058 | $4.61 | Shop at ECS Tuning | |||||
| 11 | Bush | 1 | 31421457867 | $24.29 | Shop at ECS Tuning | |||||
| 12 | Lock Ring | 2 | 31421458078 | $4.57 | ENDED | Shop at ECS Tuning | ||||
| 13 | Compression spring | 2 | 31421458079 | $51.33 | Shop at ECS Tuning | |||||
| 14 | Bush right | 1 | 31421457865 | $25.39 | Shop at ECS Tuning | |||||
| 15 | Guide ring, left | 1 | 31421458254 | $4.61 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
