Fork slider for BMW R 80 GS, R 100 GS, PD (87-90) GS

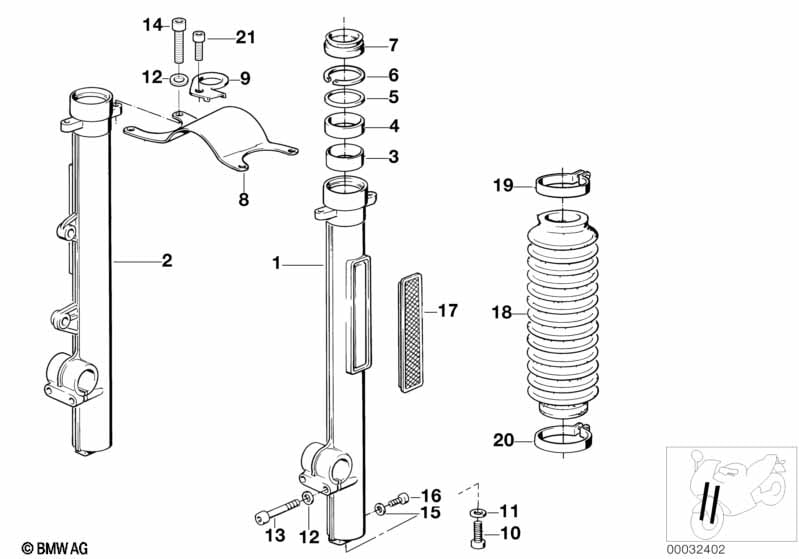

This Fork slider technical drawing provides a detailed breakdown of the assembly for the R 80 GS, R 100 GS, PD (87-90) GS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inner tube, black, left | 1 | 31421458061 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | Inner tube, yellow, left | 1 | 31421458223 | $666.86 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Inner tube, black, right | 1 | 31421458062 | $666.86 | +core | Shop at ECS Tuning | ||||
| 02 | Inner tube, yellow, right | 1 | 31421458224 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | sliding sleeve | 2 | 31421458222 | $32.61 | Shop at ECS Tuning | |||||
| 04 | Shaft seal | 40X52X10 | 2 | 31421458064 | $14.34 | +core | Shop at ECS Tuning | |||
| 05 | Washer | 2 | 31422312184 | $2.71 | ENDED | Shop at ECS Tuning | ||||
| 06 | Snap ring | 53X1.5 | 2 | 31421458067 | $2.64 | Shop at ECS Tuning | ||||
| 07 | Cup | 2 | 31421458065 | $27.81 | Shop at ECS Tuning | |||||
| 08 | Stabilizer | 1 | 31421452517 | $83.11 | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 31421457427 | $7.29 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M12X30-8.8-CD | 2 | 07119919778 | $3.02 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | 12.7X18X1.5 | 2 | 31421458231 | $5.54 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M8X35 ZNS | 4 | 07119901027 | $1.22 | Shop at ECS Tuning | ||||
| 14 | ISA screw | M8X25-10.9-ZNS3 | 4 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 15 | O-ring | 5,28X1,78 | 2 | 31421458477 | $0.83 | Shop at ECS Tuning | ||||
| 16 | Inner hex bolt | M6X6 | 2 | 31422332000 | $6.15 | ENDED | Shop at ECS Tuning | |||
| 17 | Side reflector, yellow, front | 2 | 63141244529 | $8.98 | Shop at ECS Tuning | |||||
| 18 | Rubber boot | 2 | 08/1989 | 31421458220 | $66.97 | Shop at ECS Tuning | ||||
| 18 | Rubber boot | 2 | 08/1989 | 31422311077 | $56.55 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | D=44MM | 2 | 31421458225 | $15.50 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | D=61MM | 2 | 31421458226 | $15.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
