Front spring strut/shock absorber for BMW 6 Series E24 628CSi (1987)

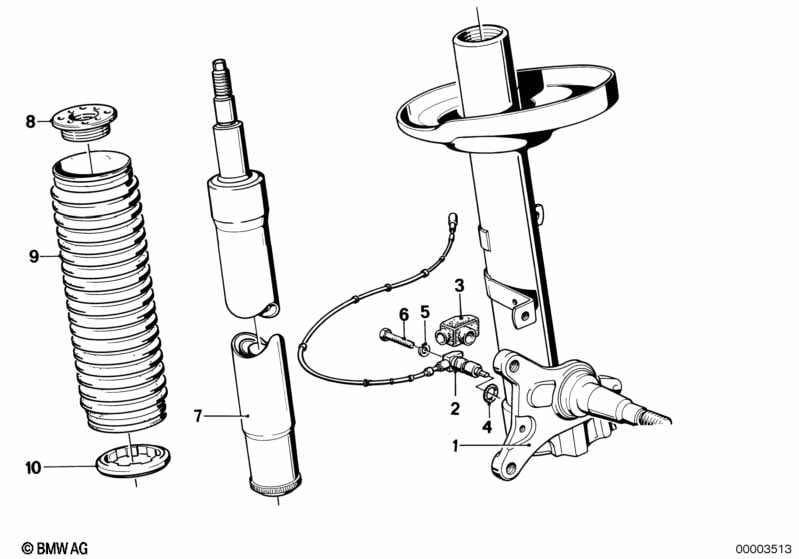

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front spring strut | 1 | 05/1982 | 31312226166 | $647.29 | Shop at ECS Tuning | ||||
| 01 | Front right spring strut | 1 | 05/1982 | 31312226167 | $647.29 | Shop at ECS Tuning | ||||
| 02 | Pulse generator | 2 | 05/1982 | 34521179981 | $153.85 | Shop at ECS Tuning | ||||
| 03 | Protection cap | 2 | 05/1982 | 34511121576 | $18.38 | ENDED | Shop at ECS Tuning | |||
| 04 | O-ring | 15X2 | 2 | 05/1982 | 11007733096 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 2 | 05/1982 | 04/1989 | 07119932073 | $0.38 | Shop at ECS Tuning | ||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 05/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 06 | ISA screw | M6X12-8.8-ZNNIV | 2 | 05/1982 | 07129905867 | Shop at ECS Tuning | ||||
| 07 | Shock absorber-insert | 2 | 05/1982 | 31321126559 | $184.54 | Shop at ECS Tuning | ||||
| For vehicles with Tropical version |
=Yes |
|||||||||
| 07 | Shock absorber-insert | 2 | 05/1982 | 31321126683 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 07 | Shock absorber-insert | 2 | 05/1982 | 31321126643 | $190.03 | Shop at ECS Tuning | ||||
| For vehicles with Suspension, trailer towing and Self-levelling suspension |
=Yes =Yes |
|||||||||
| 07 | Shock absorber-insert | 2 | 05/1982 | 31321126643 | $190.03 | Shop at ECS Tuning | ||||
| 08 | Threaded ring with external thread | M48X1,5 | 2 | 05/1982 | 31321117376 | $14.39 | Shop at ECS Tuning | |||
| 09 | Rubber boot | 2 | 05/1982 | 31321125878 | $12.62 | Shop at ECS Tuning | ||||
| 10 | Threaded ring | D=51MM | 2 | 05/1982 | 31311127285 | $3.02 | Shop at ECS Tuning | |||
