Guide support/spring pad/attaching parts for BMW 5 Series E39 528i (2000)

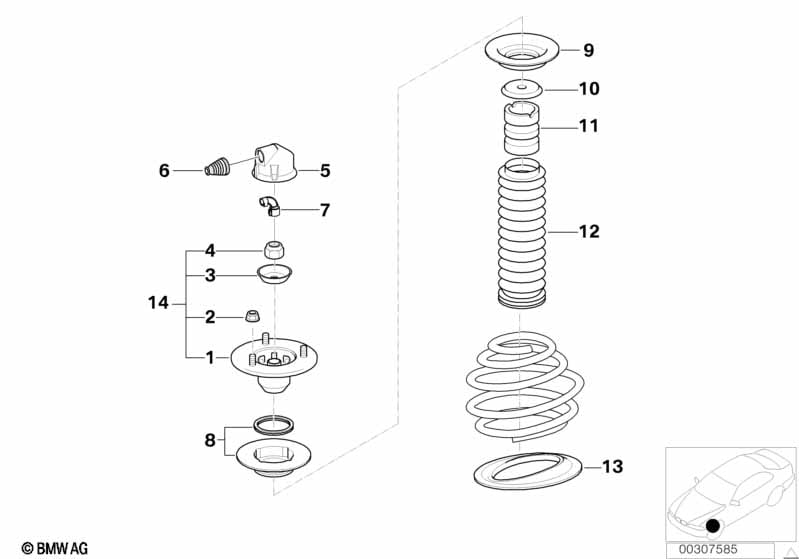

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electronic Damper Control (EDC) |
S223A=Yes |
|||||||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Plate | 2 | 31331096068 | $1.28 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Protection cap | 2 | 31321090890 | $7.95 | Shop at ECS Tuning | |||||
| 06 | Grommet | 2 | 31321090623 | $2.24 | Shop at ECS Tuning | |||||
| 07 | Tubing guide | 2 | 31321090618 | $4.01 | Shop at ECS Tuning | |||||
| 08 | Upper spring pocket w/axial cage bearing | 2 | 31331090612 | $11.70 | Shop at ECS Tuning | |||||
| 09 | Spring pad upper | 2 | 31331091233 | $5.85 | Shop at ECS Tuning | |||||
| 10 | Support | 2 | 31332283038 | $1.59 | Shop at ECS Tuning | |||||
| 11 | Additional shock absorber, front | 2 | 31331091030 | $20.05 | Shop at ECS Tuning | |||||
| 12 | Rubber boot | 2 | 31331093344 | $20.56 | Shop at ECS Tuning | |||||
| 13 | Spring pad lower | 2 | 09/1998 | 31331096664 | $4.60 | Shop at ECS Tuning | ||||
| 14 | Repair kit for support bearing | VALUE PARTS | 2 | 31352298912 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Guide support/spring pad/attaching parts?
- This technical diagram illustrates the Guide support/spring pad/attaching parts within the Front Axle group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Self-locking collar nut (Part #07119905374).
- Which models use the hardware listed in this Guide support/spring pad/attaching parts?
- The hardware and components featured in the Guide support/spring pad/attaching parts are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Self-locking collar nut (07119905374) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Guide support/spring pad/attaching parts assembly?
- Each item in the Guide support/spring pad/attaching parts corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Self-locking collar nut by locating its position on the schematic, which then links to the official BMW part number 07119905374 for the Front Axle section.
