Headlight vertical aim control sensor for BMW 3 Series E46 330d (2004)

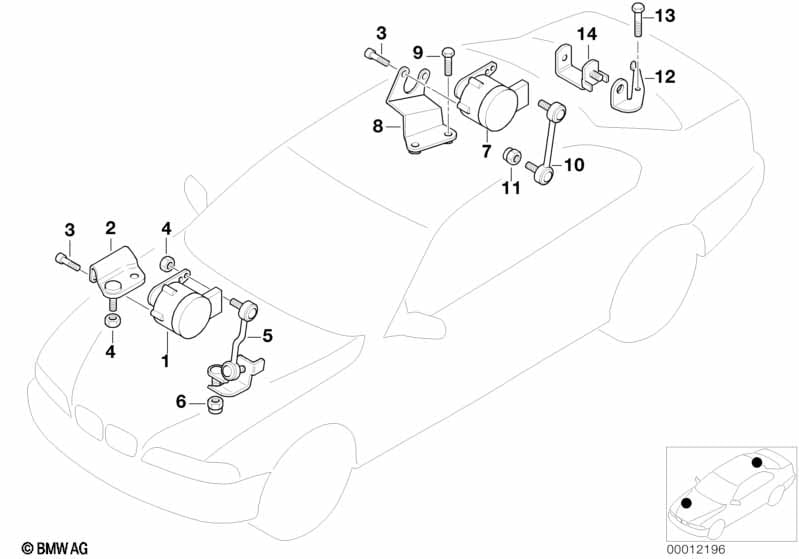

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light |
S522A=Yes |
||||||||
| 01 | Level sensor | 1 | 37146784696 | $85.28 | Shop at ECS Tuning | |||||
| 02 | Right ride height sensor bracket | 1 | 31121094088 | $3.43 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M5X10-8.8-ZNNIV | 4 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Front angle joint | 1 | 37146766778 | $13.38 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 07 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| 08 | Right ride height sensor bracket | 1 | 37146780190 | $4.75 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Regulating rod | 71,5MM | 1 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 12 | Right ride height sensor bracket | 1 | 37146779772 | $4.42 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M6X16-8.8-ZNS | 1 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Extension | 1 | 37146779669 | $3.48 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Headlight vertical aim control sensor?
- This technical diagram illustrates the Headlight vertical aim control sensor within the Front Axle group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Level sensor (Part #37146784696).
- Which models use the hardware listed in this Headlight vertical aim control sensor?
- The hardware and components featured in the Headlight vertical aim control sensor are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Level sensor (37146784696) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight vertical aim control sensor assembly?
- Each item in the Headlight vertical aim control sensor corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Level sensor by locating its position on the schematic, which then links to the official BMW part number 37146784696 for the Front Axle section.
