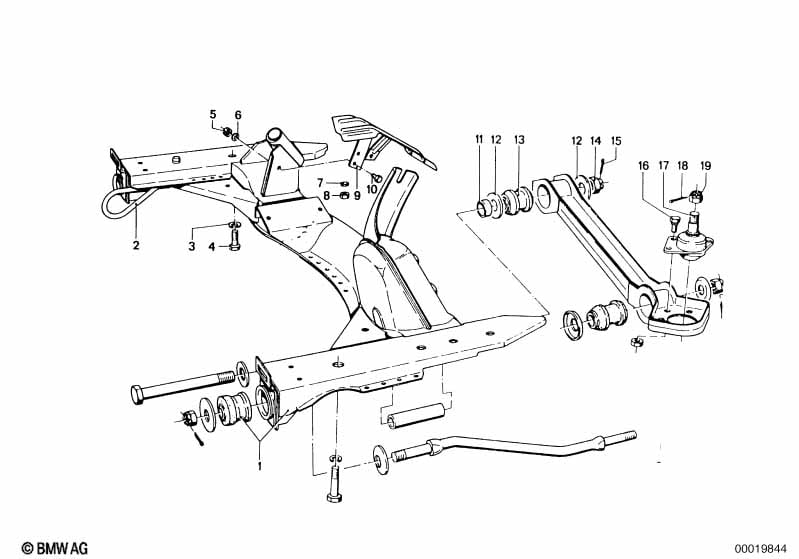

Front axle support for BMW 1502-2002tii 2002 (1976)
This Front axle support technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 02/1962 | 07/1977 | 31111116772 | $797.36 | ENDED | Shop at ECS Tuning | ||
| 02 | Towing bracket | 2 | 31112406105 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | A10,5X22 | 4 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X30-10.9ZNS3 | 4 | 07119902912 | Shop at ECS Tuning | |||||
| 11 | Shim | 2 | 31122614109 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 38X16,2X3 MM | 4 | 31122614111 | $3.86 | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 2 | 31122614100 | $13.26 | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M16X1,5 | 2 | 07129922754 | $1.09 | Shop at ECS Tuning | ||||
| 15 | Set split pin 10 | 4X28 | 2 | 07509064016 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20-ZNNIV SI | 6 | 07119903039 | Shop at ECS Tuning | |||||
| 17 | Joint link | 2 | 31131102006 | Shop at ECS Tuning | ||||||
| 18 | Split pin | 3,2X18 | 2 | 07119945193 | $0.09 | Shop at ECS Tuning | ||||
| 19 | Crown nut | M12 | 2 | 31122624120 | $2.05 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
