Guide support/spring pad/attaching parts for BMW 1502-2002tii 2002 (1973)

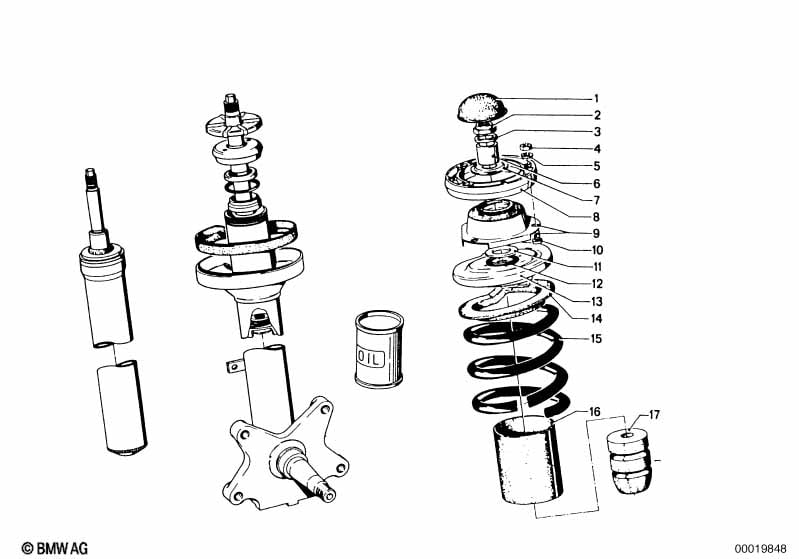

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit dust cap | 2 | 31331110540 | $9.92 | Shop at ECS Tuning | |||||
| 02 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 03 | Washer | A13/HV-ZNS | 2 | 07/1977 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-8-ZNS3 | 6 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Spacer sleeve | 2 | 31332450115 | $4.85 | ENDED | Shop at ECS Tuning | ||||
| 07 | Washer | 2 | 31331118095 | $3.70 | ENDED | Shop at ECS Tuning | ||||
| if necessary | ||||||||||
| 08 | Washer | 2 | 31331113721 | ENDED | Shop at ECS Tuning | |||||
| 09 | Guide support | M8X18 | 2 | 31331110195 | $91.76 | Shop at ECS Tuning | ||||
| if necessary | ||||||||||
| 09 | Guide support | M8X35 | 2 | 31331112644 | $99.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | 2 | 31331106059 | $31.80 | Shop at ECS Tuning | |||||
| 10 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 10 | Knurled bolt | M8X35 | 6 | 33521103812 | $3.85 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | X | 31331106059 | $31.80 | Shop at ECS Tuning | |||||
| -- | Washer | X | 31331113721 | ENDED | Shop at ECS Tuning | |||||
| 11 | Washer | A15 ZNS3 | 2 | 07119905829 | $0.74 | Shop at ECS Tuning | ||||
| 12 | Dust protection collar | 2 | 31331110196 | $1.84 | Shop at ECS Tuning | |||||
| 13 | Spring pocket | 2 | 31332450119 | $58.18 | ENDED | Shop at ECS Tuning | ||||
| 14 | Spring pad | 4 | 31332450120 | $4.75 | Shop at ECS Tuning | |||||
| 15 | Coil spring | GRUEN | 2 | 31331112168 | $164.12 | Shop at ECS Tuning | ||||
| 15 | Coil spring | WEISS | 2 | 31331112169 | $164.12 | Shop at ECS Tuning | ||||
| 15 | Coil spring | ROT | 2 | 31331112170 | $106.90 | ENDED | Shop at ECS Tuning | |||
| 16 | Protection tube | 2 | 31332450121 | $23.35 | Shop at ECS Tuning | |||||
| 17 | Absorber | 2 | 31331100633 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
