Front spring strut/shock absorber for BMW 1502-2002tii 1502 (1977)

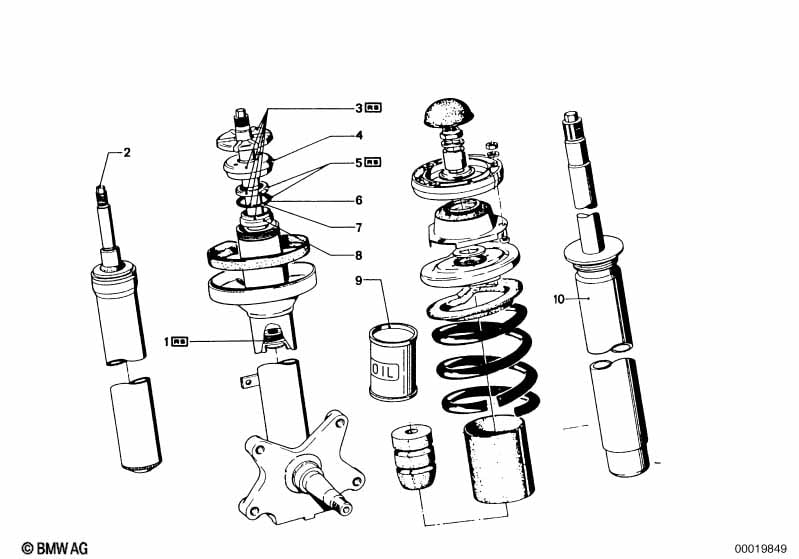

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.

Front spring strut/shock absorber
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Shock absorber-insert BOGE 2 31321104320 $145.52 Shop at ECS Tuning
02 Shock absorber-insert F&S 2 31321106354 $199.76 ENDED Shop at ECS Tuning
04 Cap 2 31311105912 $48.71 Shop at ECS Tuning
10 Shock absorber-insert BILSTEIN 2 31321114384 $228.21 +core Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
