Stabilizer for BMW 1502-2002tii 2002ti (1972)

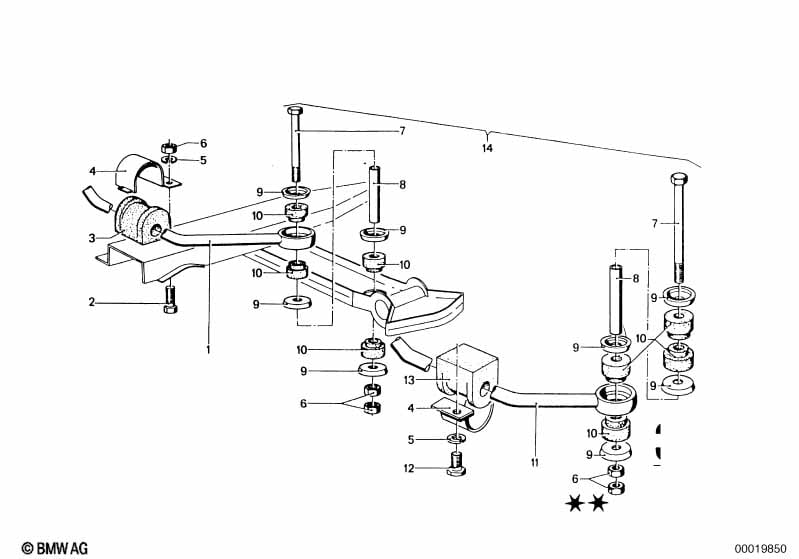

This Stabilizer technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | 1 | 03/1966 | 07/1977 | 31352454000 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister-head screw | M8X18 | 4 | 07119919935 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | D=15MM | 2 | 03/1966 | 07/1977 | 31352454010 | $5.60 | Shop at ECS Tuning | ||
| 04 | Stabilizer support | 4 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 05 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNS3 | 12 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 12 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X160 | 4 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 08 | Spacer sleeve | 4 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 09 | Plate | 16 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 10 | Rubber Ring | 16 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 11 | Stabilizer | D=16MM | 1 | 33553454000 | $153.61 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M8X18-8.8-ZNS3 | 4 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002ti Stabilizer?
- This technical diagram illustrates the Stabilizer within the Front Axle group for the 1502-2002tii 2002ti produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer, front (Part #31352454000).
- Which models use the hardware listed in this Stabilizer?
- The hardware and components featured in the Stabilizer are specific to the 1502-2002tii 2002ti produced during 1972. These technical specifications ensure that parts like the Stabilizer, front (31352454000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer assembly?
- Each item in the Stabilizer corresponds to the numbered list below the illustration. For the 1502-2002tii 2002ti, you can identify the Stabilizer, front by locating its position on the schematic, which then links to the official BMW part number 31352454000 for the Front Axle section.
