Mounting parts f front spring strut assy for BMW 1500-2000CS 2000tii (1971)

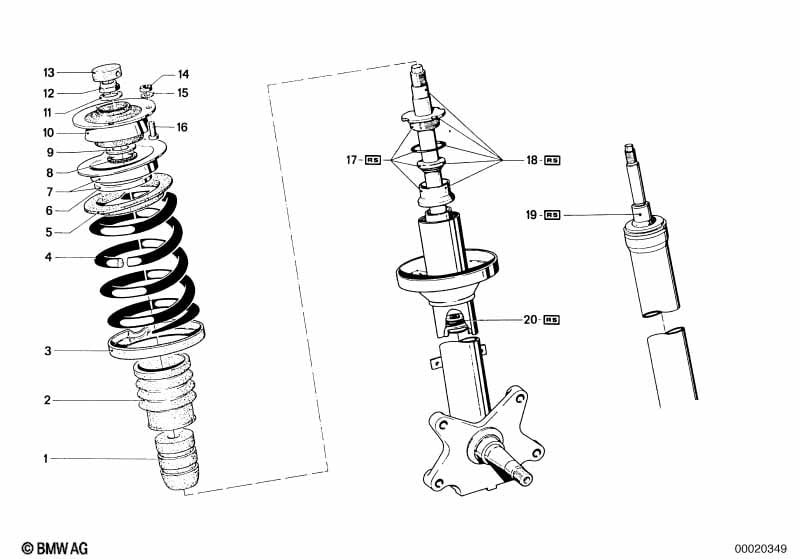

This Mounting parts f front spring strut assy technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Absorber | 2 | 31331100633 | Shop at ECS Tuning | ||||||
| 02 | Cup | 2 | 31332750138 | $15.08 | Shop at ECS Tuning | |||||
| 03 | Spring pad | 2 | 31332750122 | $29.65 | Shop at ECS Tuning | |||||
| 04 | Coil spring | VORNE/ ROT | 2 | 31331112159 | $130.57 | ENDED | Shop at ECS Tuning | |||
| 04 | Coil spring | VORNE | 2 | 31331112161 | $94.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring pad | 2 | 31332750121 | $27.97 | Shop at ECS Tuning | |||||
| 06 | Guide | 2 | 31332750143 | Shop at ECS Tuning | ||||||
| 07 | Spring pocket | 2 | 31332750118 | $31.91 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 2 | 31331108927 | $2.50 | Shop at ECS Tuning | |||||
| 09 | Washer | 2 | 31332750139 | $0.57 | Shop at ECS Tuning | |||||
| 10 | Guide support | 2 | 31331101663 | $137.89 | Shop at ECS Tuning | |||||
| 11 | Washer | 2 | 31331110301 | $0.91 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M18X1,5 | 2 | 07129922475 | $1.46 | Shop at ECS Tuning | ||||
| 13 | Cap | 2 | 31331101662 | $32.18 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M8-8-ZNS3 | 6 | 09/1963 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | ||
| 14 | Hex nut | M8-8-ZNNIV SI | 6 | 09/1963 | 01/1972 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 15 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 19 | Shock absorber-insert | COMFORT | 2 | 31321112602 | $251.18 | ENDED | Shop at ECS Tuning | |||
| 19 | Shock absorber-insert | 2 | 31321112228 | $174.10 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
