Front axle support for BMW 2500-3.3Li 2500 (1977)

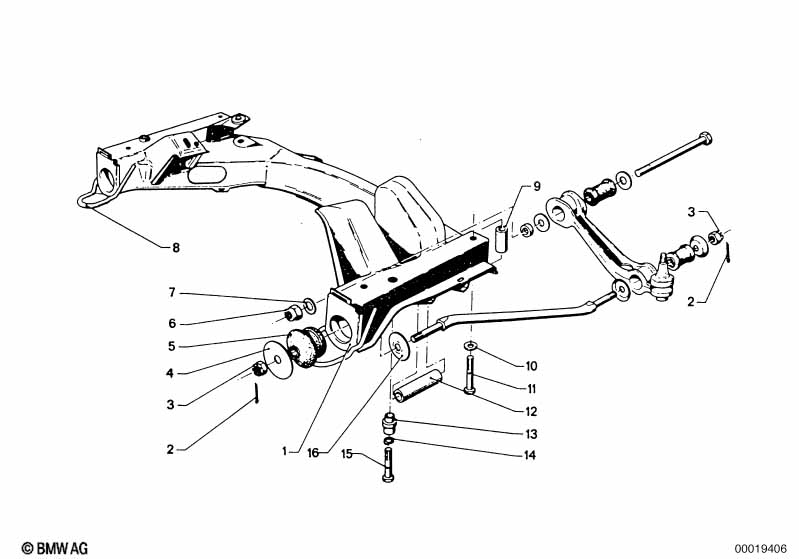

This Front axle support technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Washer | 2 | 31121108294 | $5.53 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 05 | Repair kit rubber mounting | 2 | 31121123553 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 05 | Rubber Mounting | 2 | 31128881082 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M16X1,5 | 2 | 07129922754 | $1.09 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 07 | Washer | 2 | 31112614113 | $1.02 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 08 | Towing bracket | 2 | 31111102698 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 11 | Set bolt 5 | M12X1,5X70 | 2 | 07509063228 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 12 | Pipe | 2 | 31121101937 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 14 | Spring washer | B12 | 2 | 07119933127 | $0.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M12X1,5X60 | 2 | 07119914643 | $2.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
| 16 | Washer | 2 | 31121100626 | $1.40 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tension strut | 2 | 31121101969 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Front axle support?
- This technical diagram illustrates the Front axle support within the Front Axle group for the 2500-3.3Li 2500 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #31121108294).
- Which models use the hardware listed in this Front axle support?
- The hardware and components featured in the Front axle support are specific to the 2500-3.3Li 2500 produced during 1977. These technical specifications ensure that parts like the Washer (31121108294) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front axle support assembly?
- Each item in the Front axle support corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 31121108294 for the Front Axle section.
