Front axle support/wishbone for BMW 2500-3.3Li 2800 (1971)

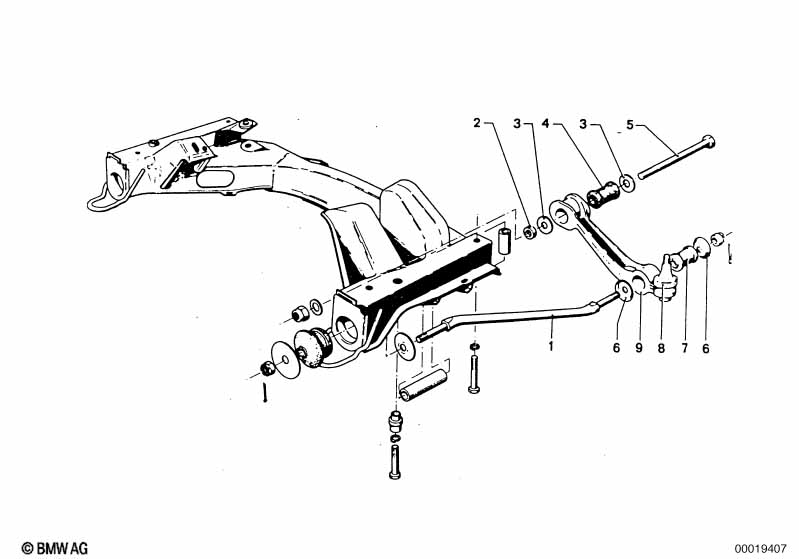

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tension strut | H=231MM | 2 | 08/1968 | 09/1973 | 31121112885 | $35.15 | ENDED | Shop at ECS Tuning | |
| only applies to | ||||||||||
| -- | Wishbone, left | L=381MM | X | 08/1968 | 09/1973 | 31121104387 | $296.82 | ENDED | Shop at ECS Tuning | |
| -- | Wishbone, right | L=381MM | X | 08/1968 | 09/1973 | 31121104388 | $296.82 | ENDED | Shop at ECS Tuning | |
| 02 | Shim | 2 | 31121102039 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | 38X16,2X3 MM | 4 | 31122614111 | $3.86 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 2 | 08/1968 | 02/1977 | 31122614100 | $13.26 | Shop at ECS Tuning | |||
| 05 | Hex bolt | 2 | 31121103062 | $12.05 | Shop at ECS Tuning | |||||
| 06 | Washer | 4 | 31122614161 | $3.70 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 2 | 31122614103 | $13.06 | Shop at ECS Tuning | |||||
| 08 | Dust cap | 2 | 31121109077 | $4.27 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wishbone, left | 1 | 08/1968 | 09/1973 | 31121104389 | ENDED | Shop at ECS Tuning | |||
| 09 | Wishbone, right | L=381MM | 1 | 08/1968 | 09/1973 | 31121104390 | ENDED | Shop at ECS Tuning | ||
