Wheel bearing for BMW 2500-3.3Li 2500 (1971)

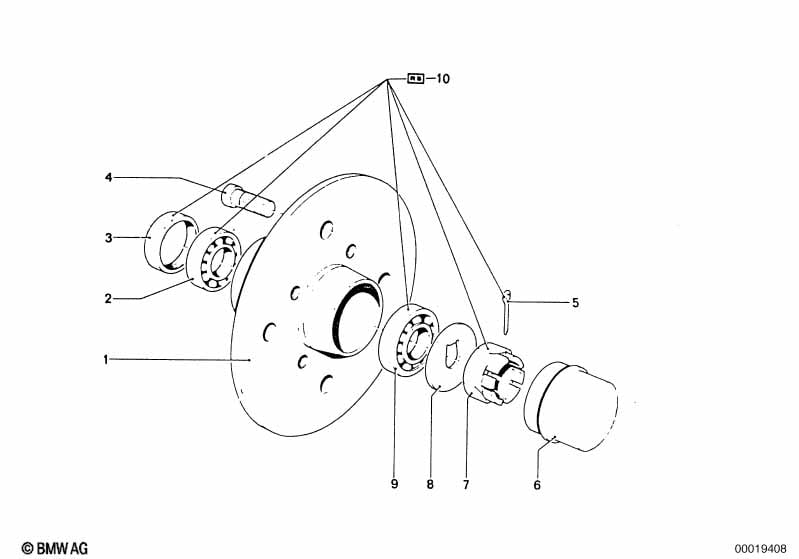

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub | 2 | 31211108379 | Shop at ECS Tuning | ||||||
| 02 | Tapered roller bearing | 31,7X59,13X15,8 | 2 | 31212634106 | $15.60 | Shop at ECS Tuning | ||||
| 03 | Shaft seal | 45X62X7 | 2 | 31212634108 | $12.32 | Shop at ECS Tuning | ||||
| 03 | Shaft seal | 2 | 31211106218 | ENDED | Shop at ECS Tuning | |||||
| 04 | Pin | X | 31212031750 | $2.27 | Shop at ECS Tuning | |||||
| 05 | Split pin | 2 | 31211110140 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Cap | 2 | 31212634120 | $6.03 | Shop at ECS Tuning | |||||
| 07 | Crown nut | M16X1 | 2 | 31211104626 | $7.49 | Shop at ECS Tuning | ||||
| 08 | Washer | 2 | 31212634115 | $9.20 | Shop at ECS Tuning | |||||
| 09 | Tapered roller bearing | 19X45,23X15,49 | 2 | 31212634103 | $15.45 | ENDED | Shop at ECS Tuning | |||
| 10 | Wheel bearing repair kit | 2 | 31211107456 | $105.54 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
