Front spring strut/shock absorber for BMW 2500-3.3Li 2800Bav (1971)

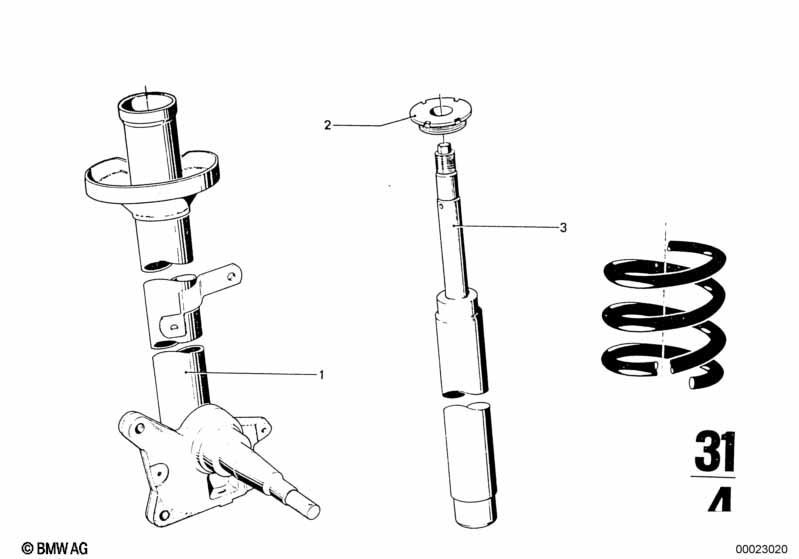

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Early version | ||||||||||
| 01 | Left front spring strut | M 10 | 1 | 05/1971 | 09/1973 | 31311110805 | $1238.76 | ENDED | Shop at ECS Tuning | |
| 01 | Front right spring strut | M 10 | 1 | 05/1971 | 09/1973 | 31311110806 | ENDED | Shop at ECS Tuning | ||
| 02 | Threaded ring with external thread | M50X1,5 | 2 | 31321100093 | $25.36 | ENDED | Shop at ECS Tuning | |||
| 02 | Threaded ring with external thread | M48X1,5 | 2 | 31321117376 | $14.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800Bav Front spring strut/shock absorber?
- This technical diagram illustrates the Front spring strut/shock absorber within the Front Axle group for the 2500-3.3Li 2800Bav produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Left front spring strut (Part #31311110805).
- Which models use the hardware listed in this Front spring strut/shock absorber?
- The hardware and components featured in the Front spring strut/shock absorber are specific to the 2500-3.3Li 2800Bav produced during 1971. These technical specifications ensure that parts like the Left front spring strut (31311110805) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front spring strut/shock absorber assembly?
- Each item in the Front spring strut/shock absorber corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800Bav, you can identify the Left front spring strut by locating its position on the schematic, which then links to the official BMW part number 31311110805 for the Front Axle section.
