Guide support/spring pad/attaching parts for BMW 2500-3.3Li 2800 (1970)

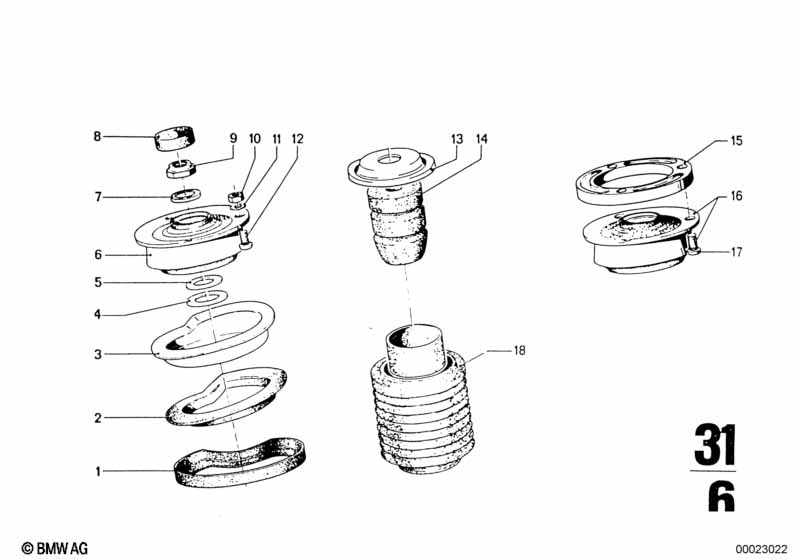

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring pad | 2 | 31331100636 | $13.07 | Shop at ECS Tuning | |||||
| 02 | Spring pad upper | 3,5 MM | 2 | 08/1968 | 02/1977 | 31331100635 | $4.54 | Shop at ECS Tuning | ||
| 02 | Spring pad | 15 MM | 2 | 01/1969 | 02/1977 | 31331113671 | $19.85 | Shop at ECS Tuning | ||
| 03 | Upper spring plate | 2 | 31331100906 | $12.61 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | 2 | 31331108927 | $2.50 | Shop at ECS Tuning | |||||
| 05 | Washer | 2 | 31332750139 | $0.57 | Shop at ECS Tuning | |||||
| 06 | Guide support | 2 | 08/1968 | 02/1977 | 31331101663 | $137.89 | Shop at ECS Tuning | |||
| 07 | Washer | 2 | 01/1969 | 02/1977 | 31331110301 | $0.91 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 08 | Cap | 2 | 01/1969 | 02/1977 | 31331101662 | $32.18 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M18X1,5 | 2 | 01/1969 | 02/1977 | 07129922475 | $1.46 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-ZNS | 6 | 01/1969 | 02/1977 | 07119922856 | $0.56 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 11 | Wave washer | B8 | 6 | 01/1969 | 02/1977 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 14 | Absorber | 2 | 01/1969 | 02/1977 | 31331100633 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 15 | Washer | 2 | 01/1969 | 02/1977 | 31331106059 | $31.80 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 16 | Guide support | 2 | 01/1969 | 07/1974 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 07/1974 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
| 17 | Knurled bolt | M8X35 | 6 | 01/1969 | 02/1977 | 33521103812 | $3.85 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Guide support | X | 01/1969 | 02/1977 | 31331106060 | $100.20 | Shop at ECS Tuning | |||
