Stabilizer for BMW 2500-3.3Li 2500 (1977)

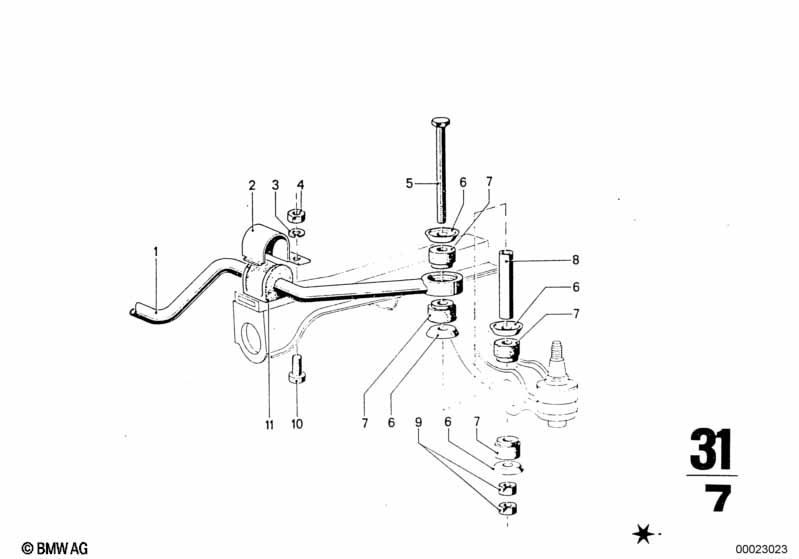

This Stabilizer technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 06 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 07 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 08 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | M10X22 | 2 | 07119901979 | $1.98 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Stabilizer?
- This technical diagram illustrates the Stabilizer within the Front Axle group for the 2500-3.3Li 2500 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119904463).
- Which models use the hardware listed in this Stabilizer?
- The hardware and components featured in the Stabilizer are specific to the 2500-3.3Li 2500 produced during 1977. These technical specifications ensure that parts like the Wave washer (07119904463) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer assembly?
- Each item in the Stabilizer corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119904463 for the Front Axle section.
