Frnt axle support,wishbone/tension strut for BMW X5 E53 3.0i

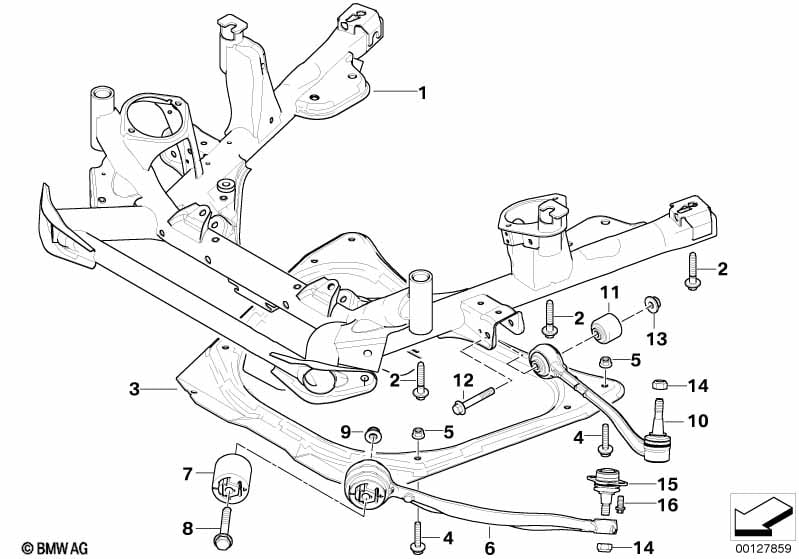

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31116760277 | $1196.10 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Reinforcement plate | 1 | 31101095656 | $158.83 | Shop at ECS Tuning | |||||
| 01 | Front axle support | 1 | 31116760277 | $1196.10 | ENDED | Shop at ECS Tuning | ||||
| 02 | Flange screw | M12X1,5X66 | 6 | 31106760705 | $1.86 | ENDED | Shop at ECS Tuning | |||
| 03 | Reinforcement plate | 1 | 31101095656 | $158.83 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M10X55 | 6 | 31101096987 | $3.53 | Shop at ECS Tuning | ||||
| 05 | Hex nut wiht flange | M10-10 ZNS3 | 6 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 06 | Tension strut with rubber mounting, left | 1 | 31126769717 | $188.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 06 | Tension strut with rubber mounting, rght | 1 | 31126769718 | $188.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| See repair manual EXCHANGEABLE IN PAIRS ONLY |
||||||||||
| -- | Hexagon screw with flange | M14X1,5X103 | 1 | 31106769434 | $3.50 | Shop at ECS Tuning | ||||
| See repair manual EXCHANGEABLE IN PAIRS ONLY |
||||||||||
| -- | Self-locking hex nut | M14X1,5 05 ZNS3 | 1 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| See repair manual EXCHANGEABLE IN PAIRS ONLY |
||||||||||
| 07 | Rubber mounting f pull rod | 2 | 31126769715 | $49.55 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| See repair manual EXCHANGEABLE IN PAIRS ONLY |
||||||||||
| 08 | Hexagon screw with flange | M14X1,5X103 | 2 | 31106769434 | $3.50 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 10 | Wishbone, left | 1 | 31126760275 | $269.13 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 10 | Wishbone, right | 1 | 31126760276 | $269.13 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Collar screw | M12X1,5X80 ZNS3 | 1 | 31303450534 | $1.72 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 1 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M14X1,5 05 ZNS3 | 1 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| 11 | Steel rubber mounting | 2 | 31121124622 | $30.37 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 12 | Collar screw | M12X1,5X80 ZNS3 | 2 | 31303450534 | $1.72 | Shop at ECS Tuning | ||||
| 13 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M14X1,5 05 ZNS3 | 4 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| 15 | Wheel suspension joint | 2 | 31126756491 | $66.37 | Shop at ECS Tuning | |||||
| 16 | Flanged cap screw | M10X1,5X20-10.9 | 4 | 31106766780 | $1.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
