Headlight vertical aim control sensor for BMW 3 Series E46 M3 (2003)

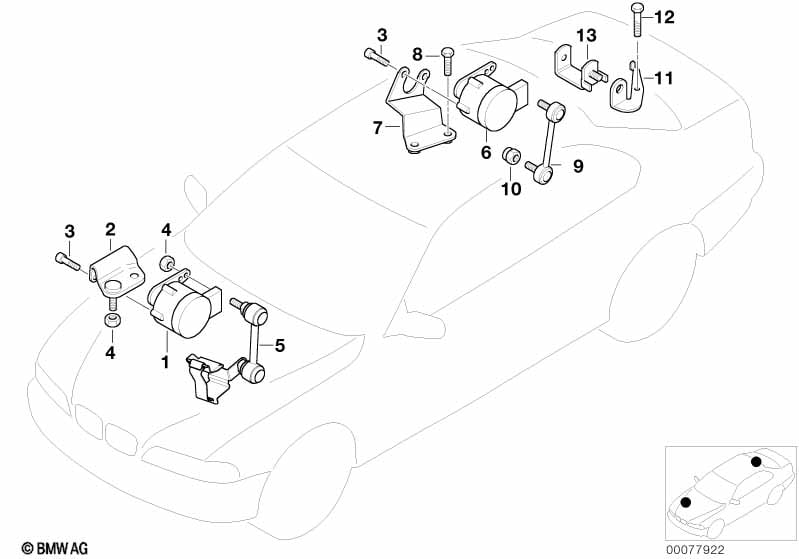

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light |
S522A=Yes |
||||||||
| 01 | Level sensor | 1 | 37146784696 | $85.28 | Shop at ECS Tuning | |||||
| 02 | Right ride height sensor bracket | 1 | 31121094088 | $3.43 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M5X10-8.8-ZNNIV | 4 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Front angle joint | 1 | 31122282404 | $54.57 | Shop at ECS Tuning | |||||
| 06 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| 07 | Right ride height sensor bracket | 1 | 37146780190 | $4.75 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Regulating rod | 71,5MM | 1 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 11 | Right ride height sensor bracket | 1 | 37146779772 | $4.42 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X16-8.8-ZNS | 1 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Extension | 1 | 37146779669 | $3.48 | Shop at ECS Tuning | |||||
