Front axle support/wishbone for BMW 3 Series E46 318i (2005)

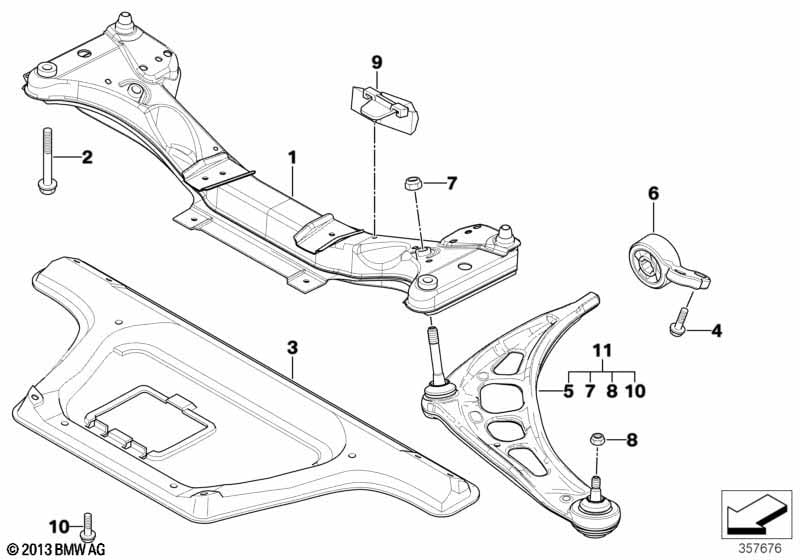

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 02/2001 | 31111096902 | $569.48 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Reinforcement plate | 1 | 02/2001 | 51717028433 | $192.85 | Shop at ECS Tuning | ||||
| 02 | Hex screw with collar | M12X1,5X100 | 4 | 02/2001 | 31116781023 | $3.60 | Shop at ECS Tuning | |||
| 03 | Reinforcement plate | 1 | 02/2001 | 51717028433 | $192.85 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M10X35-Z1-10.9 | 4 | 02/2001 | 33306760652 | $0.88 | Shop at ECS Tuning | |||
| For vehicles with M Sports package II |
S338A=Yes |
|||||||||
| 05 | Repair kit, wishbone, left | VALUE PARTS | 1 | 03/2001 | 31122341297 | Shop at ECS Tuning | ||||
| 05 | Repair kit, wishbone, right | VALUE PARTS | 1 | 03/2001 | 31122341828 | Shop at ECS Tuning | ||||
| 06 | Set of brackets with rubber mounting | D=66MM | 1 | 02/2001 | 31126783376 | $162.36 | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 02/2001 | 31106774714 | $1.12 | Shop at ECS Tuning | |||
| 08 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 02/2001 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 10 | Hexagon screw with flange | M10X35-10.9ZNS3 | 8 | 02/2001 | 31106772199 | $1.61 | Shop at ECS Tuning | |||
| For vehicles with M Sports package II |
S338A=Yes |
|||||||||
| 11 | Repair kit, wishbone, left | VALUE PARTS | 1 | 03/2001 | 31122341297 | Shop at ECS Tuning | ||||
| Fastening parts enclosed | ||||||||||
| 11 | Repair kit, wishbone, right | VALUE PARTS | 1 | 03/2001 | 31122341828 | Shop at ECS Tuning | ||||
| Fastening parts enclosed | ||||||||||
| For vehicles with M Sports package II |
S338A=No |
|||||||||
| 11 | Repair kit, wishbone, left | VALUE PARTS | 1 | 02/2001 | 31122343353 | Shop at ECS Tuning | ||||
| 11 | Repair kit, wishbone, right | VALUE PARTS | 1 | 02/2001 | 31122343352 | Shop at ECS Tuning | ||||
