Stabilizer, front for BMW 7 Series E65 750i (2008)

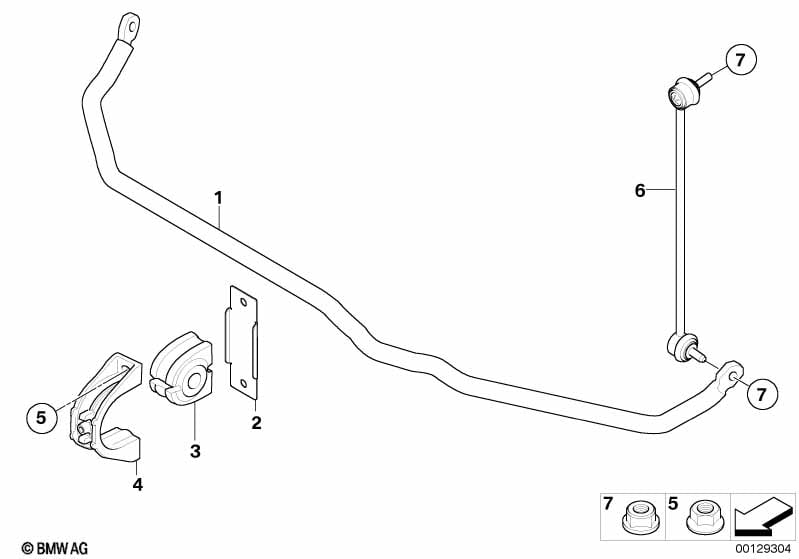

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer front with rubber mounting | D=25,5MM | 1 | 04/2006 | 31356776643 | Shop at ECS Tuning | ||||
| 04 | Stabilizer support | 2 | 04/2006 | 31356771132 | Shop at ECS Tuning | |||||
| 05 | Self-locking collar nut | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Swing support, front, left | 1 | 31306781545 | $34.05 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 06 | Swing support, front, right | 1 | 31306781546 | $34.05 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut with plate | M10 ZNS3 | 2 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M10 ZNS3 | 4 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 750i Stabilizer, front?
- This technical diagram illustrates the Stabilizer, front within the Front Axle group for the 7 Series E65 750i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer front with rubber mounting (Part #31356776643).
- Which models use the hardware listed in this Stabilizer, front?
- The hardware and components featured in the Stabilizer, front are specific to the 7 Series E65 750i produced during 2008. These technical specifications ensure that parts like the Stabilizer front with rubber mounting (31356776643) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, front assembly?
- Each item in the Stabilizer, front corresponds to the numbered list below the illustration. For the 7 Series E65 750i, you can identify the Stabilizer front with rubber mounting by locating its position on the schematic, which then links to the official BMW part number 31356776643 for the Front Axle section.
