Frnt axle support,wishbone/tension strut for BMW 5 Series E60 525i (2005)

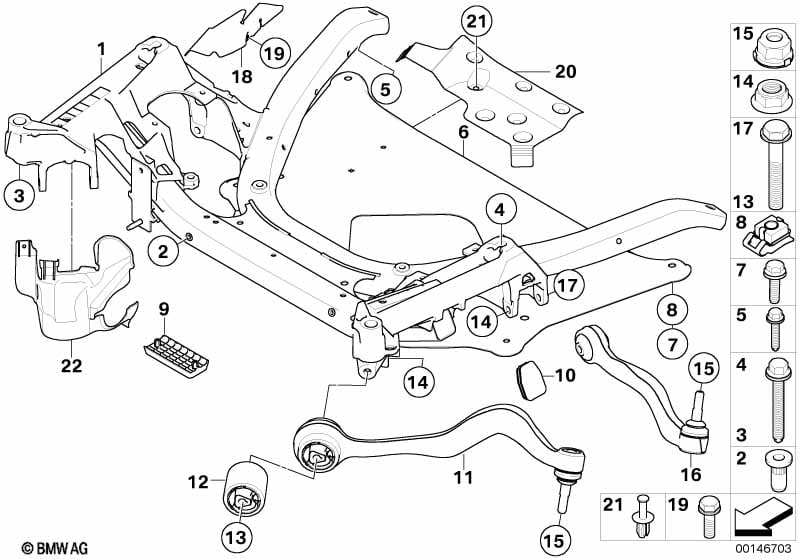

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31116782458 | $624.83 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blind rivet nut, flat headed | M6 | 11 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| 02 | Blind rivet nut, flat headed | M6 | 11 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | Shop at ECS Tuning | ||||
| 04 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | Shop at ECS Tuning | ||||
| 05 | Hexagon screw with flange | M12X1,5X65-10.9 | 2 | 31106770256 | $2.56 | Shop at ECS Tuning | ||||
| 06 | Reinforcement plate | 1 | 31116759878 | $397.30 | Shop at ECS Tuning | |||||
| 07 | Hexagon screw with flange | M10X35-10.9ZNS3 | 5 | 31106772199 | $1.61 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | M10-10-ZNS3 | 3 | 31106779393 | $1.95 | Shop at ECS Tuning | ||||
| 09 | Jack fixture | 1 | 31116752307 | $4.00 | Shop at ECS Tuning | |||||
| 10 | Blind plug | 2 | 31116757537 | $1.19 | Shop at ECS Tuning | |||||
| For vehicles with Dynamic Drive |
S229A=Yes |
|||||||||
| 10 | Blind plug | 1 | 31116757537 | $1.19 | Shop at ECS Tuning | |||||
| 11 | Repair set for radius rod, right | VALUE PARTS | 1 | 31102348046 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 11 | Repair set for radius rod, left | VALUE PARTS | 1 | 31102348047 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 12 | Hydrobearing | 2 | 31126765992 | Shop at ECS Tuning | ||||||
| Important! | ||||||||||
| 12 | Set rubber mounting f pull rod | 1 | 31120305612 | $98.93 | ENDED | Shop at ECS Tuning | ||||
| REPLACED BY SINGLE PARTS. | ||||||||||
| 13 | Hex bolt with washer | M12X1,5X120 | 2 | 31106769441 | $2.96 | Shop at ECS Tuning | ||||
| 14 | Self-locking collar nut | M12X1,5-10 ZNS3 | 4 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Combination nut | M14X1,5-10ZNNIV | 4 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 16 | Repair kit, wishbone, left | VALUE PARTS | 1 | 03/2006 | 31122347951 | Shop at ECS Tuning | ||||
| Fastening parts enclosed | ||||||||||
| 16 | Repair kit, wishbone, right | VALUE PARTS | 1 | 03/2006 | 31122347952 | Shop at ECS Tuning | ||||
| Fastening parts enclosed | ||||||||||
| 17 | Hex bolt with washer | M12X1,5X100 | 2 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
