Stabilizer, front for BMW 5 Series E61 520d (2007)

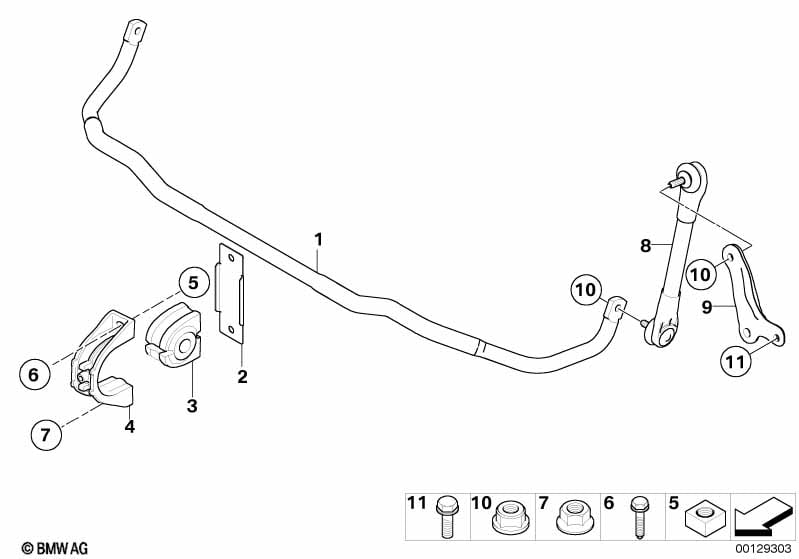

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=24.6MM | 1 | 04/2006 | 31356760982 | $170.72 | Shop at ECS Tuning | |||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 01 | Stabilizer, front | D=25MM | 1 | 04/2006 | 31356764111 | $170.72 | Shop at ECS Tuning | |||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 01 | Stabilizer, front | D=25,6MM | 1 | 31357905312 | $170.72 | Shop at ECS Tuning | ||||
| 02 | Bracket | 2 | 31356765913 | $2.26 | Shop at ECS Tuning | |||||
| 03 | Stabilizer rubber mounting | D=24.6MM | 2 | 04/2006 | 31356761591 | $27.21 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 04/2006 | 83192405829 | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 03 | Stabilizer rubber mounting | D=25 MM | 2 | 04/2006 | 31356764113 | $27.21 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 04/2006 | 83192405829 | Shop at ECS Tuning | ||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 03 | Stabilizer rubber mounting | D=25,5MM | 2 | 31356766509 | $27.21 | ENDED | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 04 | Stabilizer support | 2 | 31356757099 | $16.92 | Shop at ECS Tuning | |||||
| 05 | Square nut | M8 | 2 | 31356763094 | $0.78 | Shop at ECS Tuning | ||||
| 06 | Hexagon screw with flange | M8X35-10.9 | 2 | 31356765194 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Left swing support | 1 | 31306781547 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 08 | Right swing support | 1 | 31306781548 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut with plate | M10 ZNS3 | 2 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Left swing support bracket | 1 | 31356758527 | $22.33 | Shop at ECS Tuning | |||||
| 09 | Right swing support bracket | 1 | 31356758528 | $22.33 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | M10 ZNS3 | 4 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M10X20-10.9 | 2 | 07119904133 | $1.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
