Guide support/spring pad/attaching parts for BMW 5 Series E60 LCI 520d (2007)

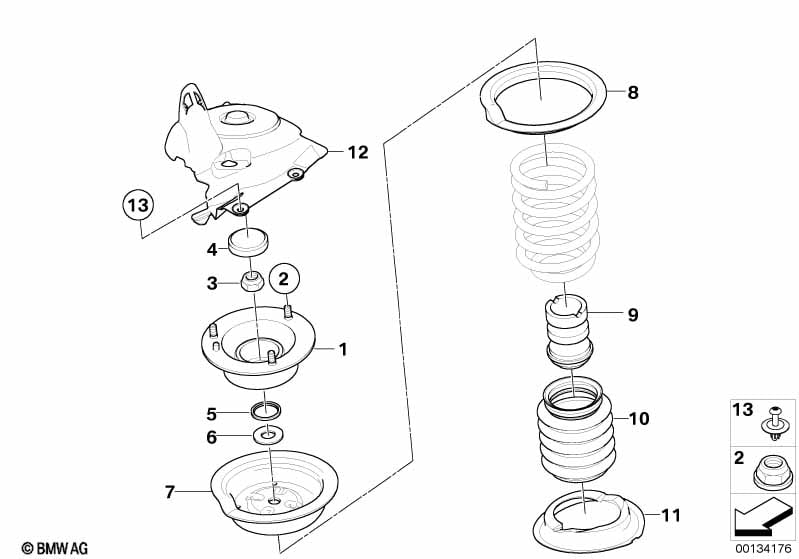

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide support | 2 | 31336760943 | $62.83 | Shop at ECS Tuning | |||||
| 01 | Repair kit for support bearing | VALUE PARTS | 2 | 31352348005 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. Kit contains all mounting hardware! |
||||||||||
| 02 | Self-locking collar nut | M8-8 ZNS3 | 6 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 04 | Covering cap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 05 | Dust protection collar | 2 | 31331110196 | $1.84 | Shop at ECS Tuning | |||||
| 06 | Washer | D=55MM | 2 | 31306763966 | $4.24 | Shop at ECS Tuning | ||||
| 07 | Upper spring pocket with spacer | 2 | 31326769667 | $10.63 | Shop at ECS Tuning | |||||
| 08 | Spring pad upper | 2 | 31331091867 | $3.73 | Shop at ECS Tuning | |||||
| 09 | Additional shock absorber, front | 2 | 31336764085 | $29.18 | Shop at ECS Tuning | |||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 09 | Additional shock absorber, front | 2 | 31336764086 | $29.18 | Shop at ECS Tuning | |||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 09 | Additional shock absorber, front | 2 | 31337905316 | $29.18 | Shop at ECS Tuning | |||||
| 10 | Protection tube | 2 | 31331094749 | $3.76 | Shop at ECS Tuning | |||||
| 11 | Spring pad lower | 2 | 31331096664 | $4.60 | Shop at ECS Tuning | |||||
