Front stabilizer bar/Dynamic Drive for BMW 5 Series E61 530d (2007)

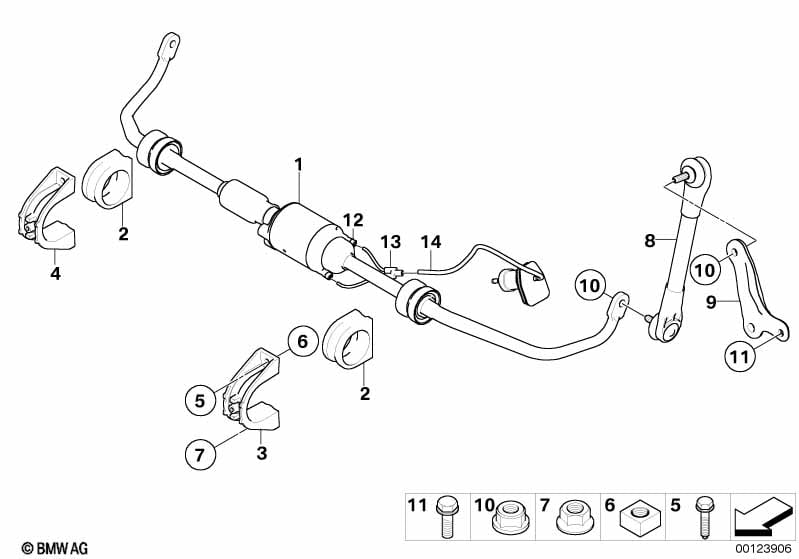

This Front stabilizer bar/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | Active stabilizer bar | D=22,2MM | 1 | 37116780011 | $1424.02 | Shop at ECS Tuning | ||||
| 02 | Stabilizer rubber mounting | 2 | 05/2006 | 31356753913 | $15.43 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 05/2006 | 83192405829 | Shop at ECS Tuning | ||||
| 03 | Stabilizer support | 1 | 31356757099 | $16.92 | Shop at ECS Tuning | |||||
| 04 | Stabilizer bar retaining bracket, FR | 1 | 31356757100 | $16.92 | Shop at ECS Tuning | |||||
| 05 | Hexagon screw with flange | M8X35-10.9 | 2 | 31356765194 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Square nut | M8 | 2 | 31356763094 | $0.78 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Left swing support | 1 | 31306781547 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 08 | Right swing support | 1 | 31306781548 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut with plate | M10 ZNS3 | 2 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Left swing support bracket | 1 | 31356758527 | $22.33 | Shop at ECS Tuning | |||||
| 09 | Right swing support bracket | 1 | 31356758528 | $22.33 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | M10 ZNS3 | 4 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M10X20-10.9 | 2 | 07119904133 | $1.16 | Shop at ECS Tuning | ||||
| 12 | Ventilation valve | M10X1 | 2 | 37106759856 | $85.82 | Shop at ECS Tuning | ||||
| 13 | Distribution hose | 1 | 37106762513 | $33.20 | Shop at ECS Tuning | |||||
| 14 | Vent pipe | 1 | 37106778240 | $51.03 | Shop at ECS Tuning | |||||
