Valve block + add-on parts/Dynamic Drive for BMW 5 Series E60 525i (2007)

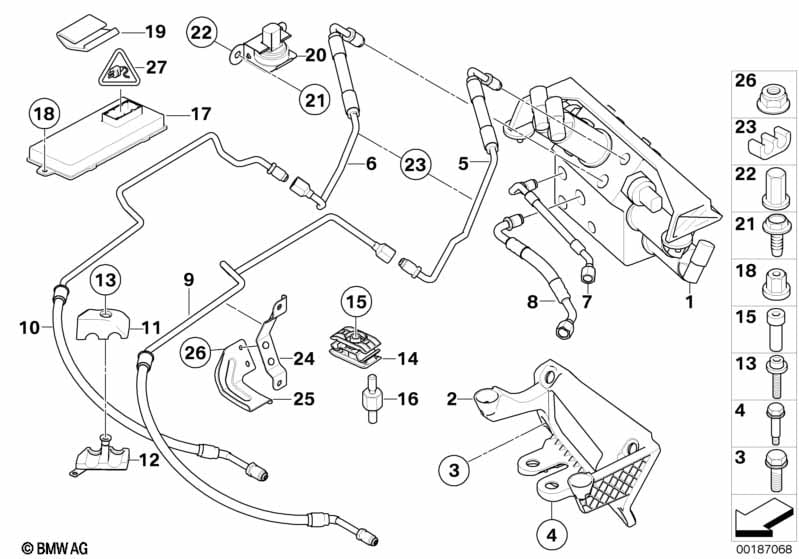

This Valve block + add-on parts/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | Valve block | 1 | 37206781488 | $1010.60 | Shop at ECS Tuning | |||||
| 02 | Body bracket, valve block | 1 | 37206761207 | $39.52 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X30-ZNNIV SI | 4 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Collar screw | M6X31,7 ZNS3 | 2 | 37206777944 | $2.17 | Shop at ECS Tuning | ||||
| 05 | Pressure line, valve block | M14X1,5 | 1 | 37136764615 | $67.08 | Shop at ECS Tuning | ||||
| 06 | Pressure line, valve block | M14X1,5/M16X1,5 | 1 | 37136764616 | $67.08 | Shop at ECS Tuning | ||||
| 07 | Pressure hose assy | M16X1,5 | 1 | 37136761193 | $99.60 | Shop at ECS Tuning | ||||
| 08 | Pressure hose assy | M18X1,5 | 1 | 37136761194 | $47.75 | Shop at ECS Tuning | ||||
| 09 | Pressure line, motor | M14X1,5 | 1 | 09/2004 | 37136765595 | $129.37 | Shop at ECS Tuning | |||
| 10 | Pressure line, motor | M14X1,5/M16X1,5 | 1 | 09/2004 | 37136765596 | $129.37 | Shop at ECS Tuning | |||
| 11 | Hose clamp | 1 | 37206761184 | $5.43 | Shop at ECS Tuning | |||||
| 12 | Hose clamp | 1 | 37206761187 | $6.53 | Shop at ECS Tuning | |||||
| 13 | Isa screw with washer | M6X45-U0-8.8 | 1 | 07129906579 | Shop at ECS Tuning | |||||
| 14 | Tubing support | 1 | 37206753048 | $6.38 | Shop at ECS Tuning | |||||
| 15 | Collar screw | M6 | 1 | 37206763806 | $1.77 | Shop at ECS Tuning | ||||
| 16 | Adapter | 1 | 37136764364 | $3.35 | Shop at ECS Tuning | |||||
| 17 | Control unit, Dynamic Drive | 1 | 37146786139 | $657.17 | Shop at ECS Tuning | |||||
| 18 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 19 | Clip | 1 | 37146752824 | $0.67 | Shop at ECS Tuning | |||||
| 20 | Accelerating sensor | 1 | 37146781407 | $102.03 | Shop at ECS Tuning | |||||
| 21 | Hex bolt with washer | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 22 | Blind rivet nut, flat headed | M6 | 2 | 51717071271 | $2.17 | Shop at ECS Tuning | ||||
| 23 | Tubing support | SCHWARZ | 4 | 37206774051 | $1.38 | Shop at ECS Tuning | ||||
| 27 | Socket housing | 54 POL. | 1 | 61138364826 | $1.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Covering cap | 54-POL | 1 | 61139253106 | Shop at ECS Tuning | |||||
