Frnt axle support,wishbone/tension strut for BMW 3 Series E90 LCI 320d (2010)

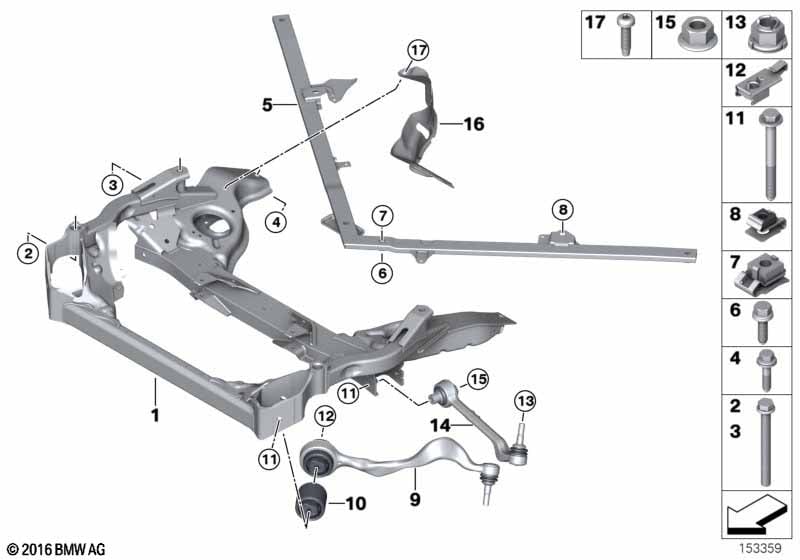

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31116785639 | $605.19 | Shop at ECS Tuning | |||||
| 02 | Screw with washer | M12X1,5X90-10.9 | 2 | 31106769907 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Hexagon screw with flange | M12X1,5X145 | 2 | 31106850312 | Shop at ECS Tuning | |||||
| 04 | Hexagon screw with flange | M12X1,5X53-10.9 | 2 | 31106767497 | $2.30 | Shop at ECS Tuning | ||||
| 05 | Rod | 1 | 31116768714 | $66.52 | Shop at ECS Tuning | |||||
| 06 | Hex screw with collar | M10X33-10.9 | 6 | 33326768354 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Plug-in nut | M10-10-ZNS3 | 2 | 31106779393 | $1.95 | Shop at ECS Tuning | ||||
| 08 | Cage nut | 2 | 31116768715 | $1.82 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 09 | Repair set for radius rod, left | VALUE PARTS | 1 | 31122405861 | Shop at ECS Tuning | |||||
| 09 | Repair set for radius rod, right | VALUE PARTS | 1 | 31122405862 | Shop at ECS Tuning | |||||
| 10 | Hydrobearing | 2 | 31126763719 | Shop at ECS Tuning | ||||||
| Important! | ||||||||||
| 10 | Set rubber mounting f pull rod | 1 | 05/2011 | 31120393540 | $98.93 | ENDED | Shop at ECS Tuning | |||
| REPLACED BY SINGLE PARTS. | ||||||||||
| 11 | Hex bolt with washer | M12X1.5X115-8.8 | 4 | 31106763928 | $2.94 | Shop at ECS Tuning | ||||
| 12 | Locking nut | M12X1,5-10 ZNS3 | 2 | 31106767496 | $2.37 | Shop at ECS Tuning | ||||
| 13 | Combination nut | M14X1,5-10ZNNIV | 4 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| Fastening parts enclosed | ||||||||||
| 14 | Repair kit, wishbone, left | VALUE PARTS | 1 | 31122405859 | Shop at ECS Tuning | |||||
| 14 | Repair kit, wishbone, right | VALUE PARTS | 1 | 31122405860 | Shop at ECS Tuning | |||||
| 15 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
