Valve block + add-on parts/Dynamic Drive for BMW 7 Series E65 730d

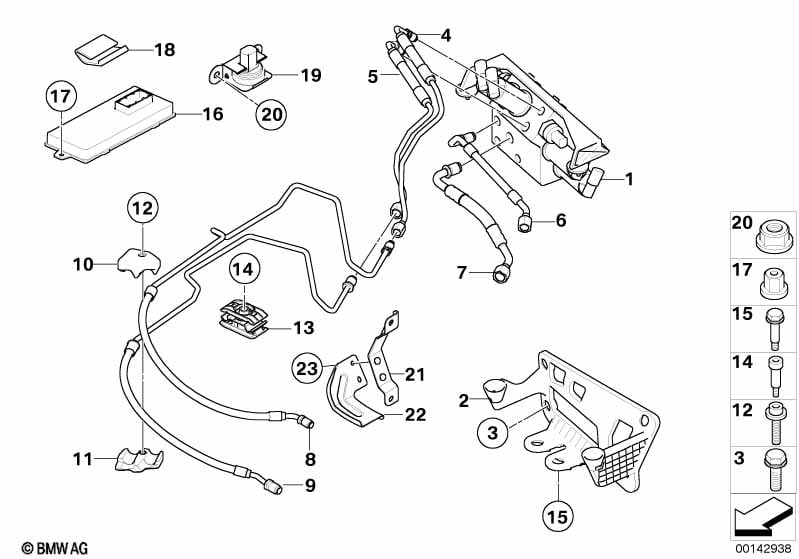

This Valve block + add-on parts/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports package or Chassis & suspens. setup"Adaptive Drive" |
P330A=Yes S2VAA=Yes |
||||||||
| 01 | Valve block | 1 | 37206781487 | $1010.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Body bracket, valve block | 1 | 37206753001 | $48.40 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X30-ZNNIV SI | 4 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Pressure line, valve block | M14X1,5 | 1 | 37136753029 | $44.17 | Shop at ECS Tuning | ||||
| 05 | Pressure line, valve block | M16X1,5 | 1 | 37136753030 | $44.17 | Shop at ECS Tuning | ||||
| 06 | Pressure hose assy | M16X1,5 | 1 | 37136753033 | $44.17 | ENDED | Shop at ECS Tuning | |||
| 07 | Pressure hose assy | M18X1,5 | 1 | 37136753034 | $44.17 | Shop at ECS Tuning | ||||
| 08 | Pressure line, motor | 1 | 37136769552 | Shop at ECS Tuning | ||||||
| 09 | Pressure line, motor | 1 | 37136769553 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 1 | 37206755855 | $6.67 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 1 | 37206755856 | $6.67 | Shop at ECS Tuning | |||||
| 12 | Isa screw with washer | M6X45-U0-8.8 | 1 | 07129906579 | Shop at ECS Tuning | |||||
| 13 | Tubing support | 2 | 37206753048 | $6.38 | Shop at ECS Tuning | |||||
| 14 | Collar screw | M6X37 ZNS3 | 2 | 37206779605 | $2.57 | Shop at ECS Tuning | ||||
| 15 | Collar screw | M6X31,7 ZNS3 | 2 | 37206777944 | $2.17 | Shop at ECS Tuning | ||||
| 16 | Control unit, Dynamic Drive | 1 | 37146786139 | $657.17 | Shop at ECS Tuning | |||||
| 17 | Locknut | M6 ZNT | 1 | 07146982788 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Clip | 1 | 37146752824 | $0.67 | Shop at ECS Tuning | |||||
| 19 | Accelerating sensor | 1 | 37146781407 | $102.03 | Shop at ECS Tuning | |||||
| 20 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 21 | Holder | 1 | 11617799154 | ENDED | Shop at ECS Tuning | |||||
| 22 | Protection plate | 1 | 37106771500 | ENDED | Shop at ECS Tuning | |||||
| 23 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
