Stabilizer, front for BMW 5 Series E60 LCI 525xi (2009)

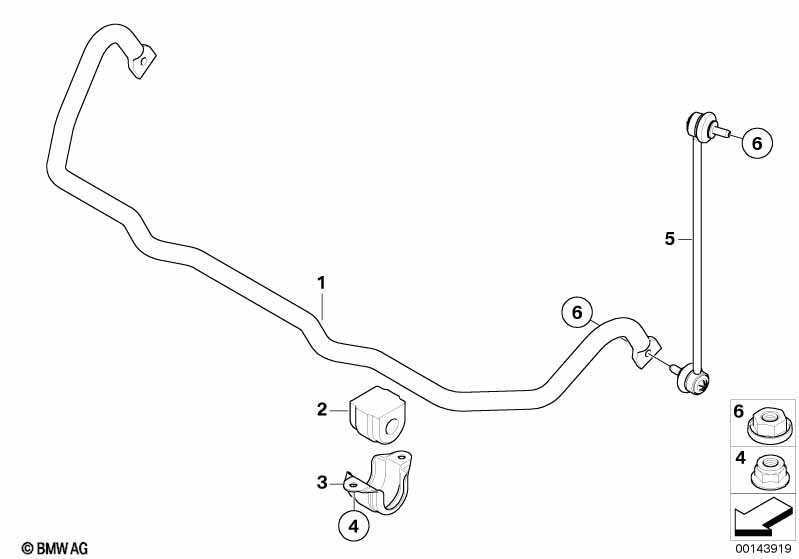

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=25,2MM | 1 | 31356768080 | $170.72 | Shop at ECS Tuning | ||||
| 02 | Stabilizer rubber mounting | D=25,2MM | 2 | 04/2021 | 31306778225 | $26.14 | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=25.2MM | 2 | 31356770003 | $27.21 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Stabilizer support | 2 | 31356768828 | $6.29 | Shop at ECS Tuning | |||||
| 04 | Self-locking collar nut | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Left swing support | 1 | 31306781549 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 05 | Right swing support | 1 | 31306781550 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut with plate | M10 ZNS3 | 2 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M10 ZNS3 | 4 | 31356757707 | $1.00 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 525xi Stabilizer, front?
- This technical diagram illustrates the Stabilizer, front within the Front Axle group for the 5 Series E60 LCI 525xi produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer, front (Part #31356768080).
- Which models use the hardware listed in this Stabilizer, front?
- The hardware and components featured in the Stabilizer, front are specific to the 5 Series E60 LCI 525xi produced during 2009. These technical specifications ensure that parts like the Stabilizer, front (31356768080) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, front assembly?
- Each item in the Stabilizer, front corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 525xi, you can identify the Stabilizer, front by locating its position on the schematic, which then links to the official BMW part number 31356768080 for the Front Axle section.
