Front Spring strut/Carrier/Wheel bearing for BMW 3 Series E90 325xi (2006)
This Front Spring strut/Carrier/Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following part is absolutely vital for strut replacements: Additional shock absorber, front |
|||||||||
| 01 | Left front spring strut | 1 | 03/2006 | 31316780193 | $309.71 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 01 | Front right spring strut | 1 | 03/2006 | 31316780194 | $309.71 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M12X1,5X87 ZNS3 | 1 | 03/2006 | 33326760346 | $2.75 | Shop at ECS Tuning | |||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 1 | 03/2006 | 33326760668 | $0.62 | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M12X1,5X87 ZNS3 | 2 | 33326760346 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Carrier, left | 1 | 31216768995 | $164.24 | +core | Shop at ECS Tuning | ||||
| 04 | Carrier, right | 1 | 31216768996 | $164.24 | +core | Shop at ECS Tuning | ||||
| 05 | Drive flange hub | 2 | 31206768993 | $112.50 | Shop at ECS Tuning | |||||

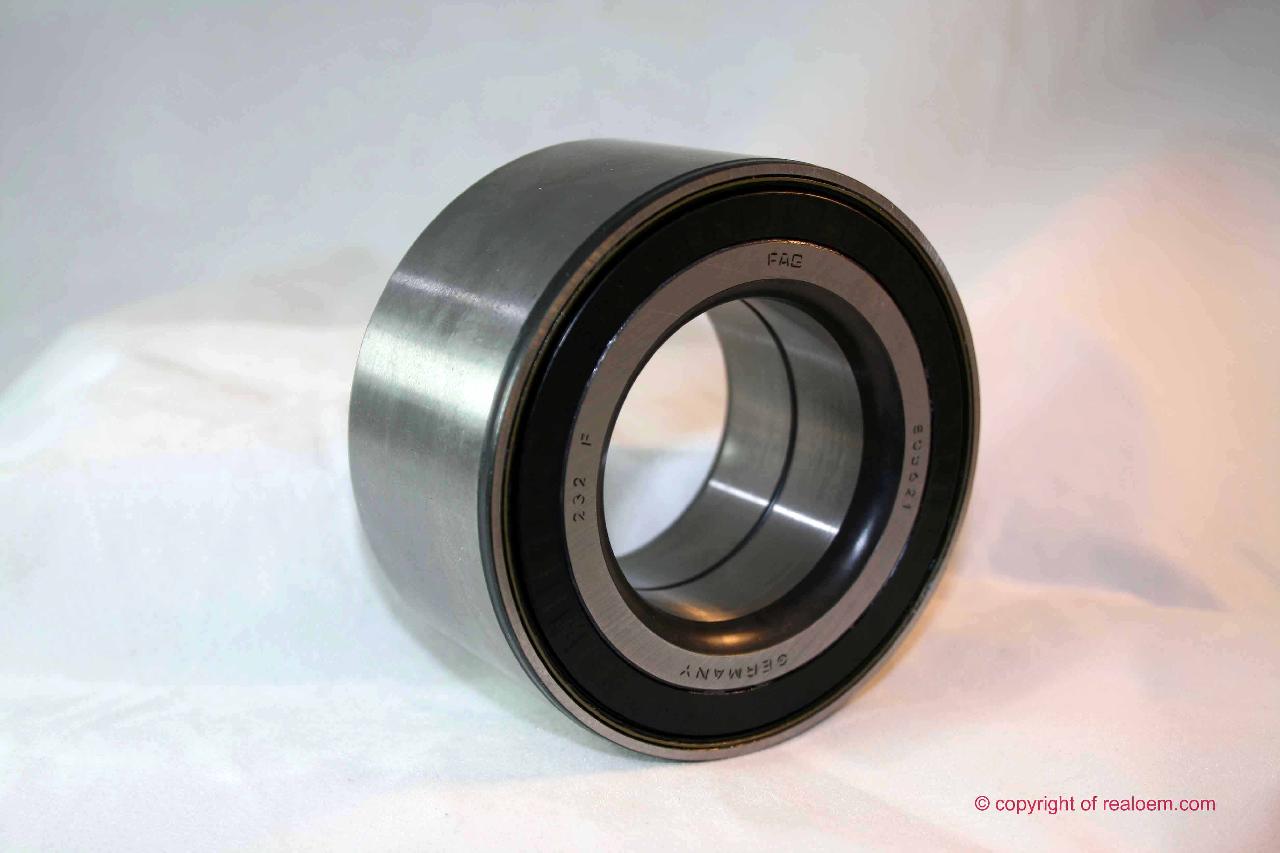

| 06 | Angular ball bearing | 49X90X45 | 2 | 31226783913 | $110.45 | Shop at ECS Tuning | ||||
| 07 | Lock Ring | 90X3 | 2 | 07119934760 | $2.96 | Shop at ECS Tuning | ||||
| 08 | Dust protection collar | 2 | 31206751740 | $5.86 | Shop at ECS Tuning | |||||
| 09 | Collar nut | M27X1,5 | 2 | 33411133785 | $10.86 | Shop at ECS Tuning | ||||
| 10 | DXC pulse generator, front | 2 | 34526764858 | $77.74 | Shop at ECS Tuning | |||||
| 11 | ISA screw | M6X16-8.8-ZNS3 | 2 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Left ABS/BVA tube bracket | 1 | 34526773551 | $8.15 | Shop at ECS Tuning | |||||
| 12 | Right ABS/BVA tube bracket | 1 | 34526773552 | $8.15 | Shop at ECS Tuning | |||||
| 13 | Tubing support | 2 | 61138350827 | $0.38 | Shop at ECS Tuning | |||||
