Front diff., components, all-wheel for BMW 5 Series F11 LCI 520dX (2016)

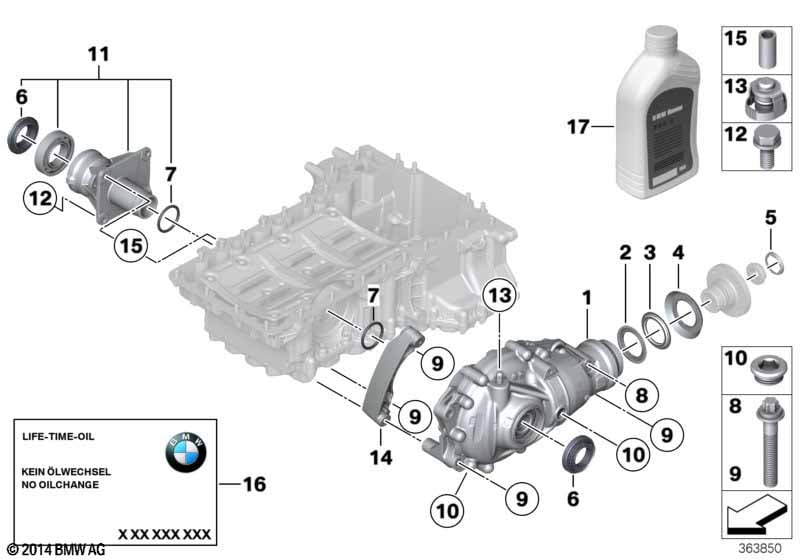

This Front diff., components, all-wheel technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Final drive (front axle) | I=3,08 | 1 | 02/2024 | 31507648881 | Shop at ECS Tuning | ||||
| 01 | Final drive (front axle) | I=3,08 | 1 | 31507648880 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 44X69X10/15 | 1 | 31527507697 | $8.59 | Shop at ECS Tuning | ||||
| 03 | Dust plate inner | 1 | 31528847176 | Shop at ECS Tuning | ||||||
| 04 | dustcover plate, large | 1 | 31511428659 | $3.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 06 | Shaft seal with lock ring | 67X44X10/15.5 | 2 | 02/2017 | 31508743675 | ENDED | Shop at ECS Tuning | |||
| 06 | Repair kit output radial shaft seal | 44X67 | 2 | 31508860349 | Shop at ECS Tuning | |||||
| 07 | O-ring | D=39MM | 2 | 31511213527 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Screw, outside Torx with washer | M12X1,5X105 | 1 | 31517589002 | $2.47 | Shop at ECS Tuning | ||||
| 09 | Screw, outside Torx with washer | M12X1,5X55-10.9 | 5 | 31517589001 | $2.27 | Shop at ECS Tuning | ||||
| 10 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 11 | Supporting bracket | 1 | 31507600690 | Shop at ECS Tuning | ||||||
| 12 | ASA-Bolt | M8X30-U1-8.8 | 3 | 07129907173 | Shop at ECS Tuning | |||||
| 12 | ASA screw, self-threading | 8X60 | 1 | 07129907250 | Shop at ECS Tuning | |||||
| 13 | Venting connector | 1 | 02/2017 | 31507595196 | $2.17 | Shop at ECS Tuning | ||||
| 13 | Breather pipe | 1 | 33108842550 | Shop at ECS Tuning | ||||||
| 14 | Adapter | 1 | 31517600921 | Shop at ECS Tuning | ||||||
| 15 | Spacer sleeve | 1 | 31507624890 | Shop at ECS Tuning | ||||||
| 16 | Stick-on label | DE, EN | 1 | 01399791197 | $4.25 | Shop at ECS Tuning | ||||
| 17 | Hypoid axle oil G2 | 0,5L | X | 07/2011 | 83222413511 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
