Frnt axle support,wishbone/tension strut for BMW 4 Series F33 LCI 435dX (2020)

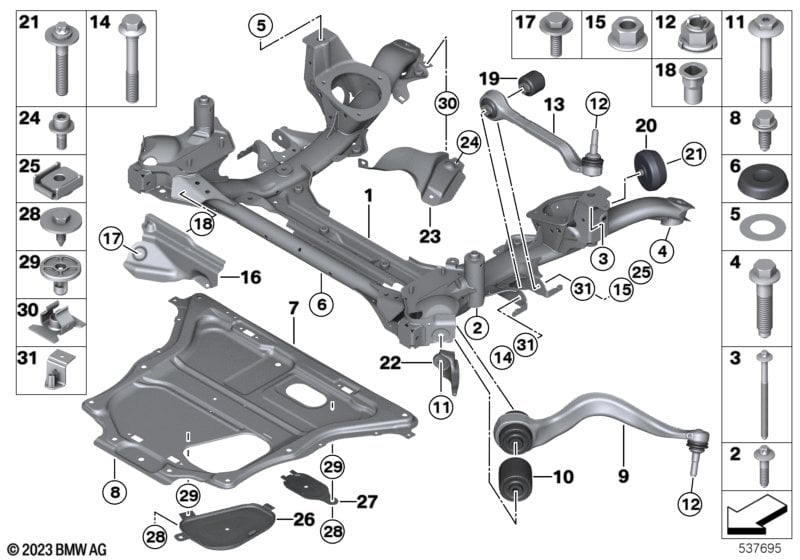

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 LCI 435dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31106872122 | Shop at ECS Tuning | ||||||
| 02 | Torx screw | M12X1,5X45-10.9 | 2 | 31106793894 | Shop at ECS Tuning | |||||
| 03 | Torx screw | M12X165-10.9 | 2 | 31106793893 | Shop at ECS Tuning | |||||
| 04 | Hexagon screw with flange | M14X1,5X60-10.9 | 2 | 07119907452 | Shop at ECS Tuning | |||||
| 05 | Foam seal | 2 | 31106856004 | Shop at ECS Tuning | ||||||
| 06 | Blind plug | D=12MM | 2 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 07 | Reinforcement plate | 1 | 31106863798 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M10X22-10.9 | 6 | 31106858433 | Shop at ECS Tuning | |||||
| 09 | Tension strut with hydraulic mount, left | 1 | 31126854723 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 09 | Tension strut with hydraulic mount,right | 1 | 31126854724 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Combination nut | M14X1,5-10ZNNIV | 1 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| -- | Hexagon screw with flange | M12X121-10.9 | 1 | 31106795930 | ENDED | Shop at ECS Tuning | ||||
| -- | Hexagon screw with flange | M12X1,5X136 | 1 | 31106863238 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hydrobearing | 2 | 31126854729 | Shop at ECS Tuning | ||||||
| 11 | Hexagon screw with flange | M12X136,10.9 | 2 | 31106885777 | Shop at ECS Tuning | |||||
| 12 | Combination nut | M14X1,5-10ZNNIV | 4 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 13 | Wishbone, left | 1 | 31126854727 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 13 | Wishbone, right | 1 | 31126854728 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 1 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Combination nut | M14X1,5-10ZNNIV | 1 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| -- | Hex screw with collar | M12X1,5X85-10.9 | 1 | 31106797237 | Shop at ECS Tuning | |||||
| 14 | Hex screw with collar | M12X1,5X85-10.9 | 2 | 31106797237 | Shop at ECS Tuning | |||||
| 15 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Rubber bushing for A-arm | 2 | 31106786959 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 24 | Hex bolt | M6X16-8.8-ZNS3 | 3 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
