Repair kit for support bearing for BMW 5 Series E60 LCI 525i (2009)

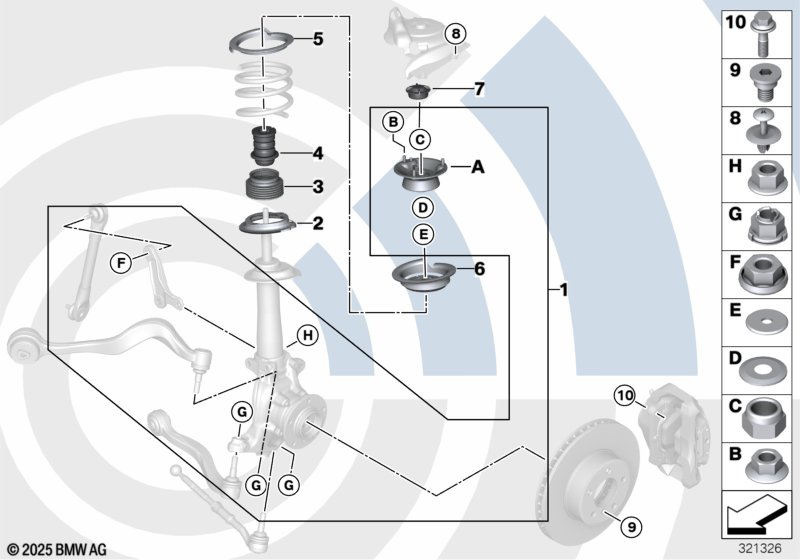

This Repair kit for support bearing technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. Improves the repair quality. |
||||||||||
| 01 | Repair kit for support bearing | VALUE PARTS | 2 | 31352348005 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 02 | Spring pad lower | 2 | 31331096664 | $4.60 | Shop at ECS Tuning | |||||
| 03 | Rubber boot | 2 | 31306857568 | Shop at ECS Tuning | ||||||
| 04 | Additional shock absorber, front | 2 | 31336764085 | $29.18 | Shop at ECS Tuning | |||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 04 | Additional shock absorber, front | 2 | 31337905316 | $29.18 | Shop at ECS Tuning | |||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 04 | Additional shock absorber, front | 2 | 31336764086 | $29.18 | Shop at ECS Tuning | |||||
| 05 | Spring pad upper | 2 | 31331091867 | $3.73 | Shop at ECS Tuning | |||||
| 06 | Upper spring pocket with spacer | 2 | 31326769667 | $10.63 | Shop at ECS Tuning | |||||
| 07 | Covering cap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 09 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 10 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 34106864424 | Shop at ECS Tuning | |||||
| For vehicles with Usable load increase |
S100A=Yes |
|||||||||
| 10 | Hex bolt | M12X1,5X43 ZNS3 | 4 | 05/2010 | 34116772117 | $1.88 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
