Front axle support/wishbone for BMW MINI F55 Cooper (2018)

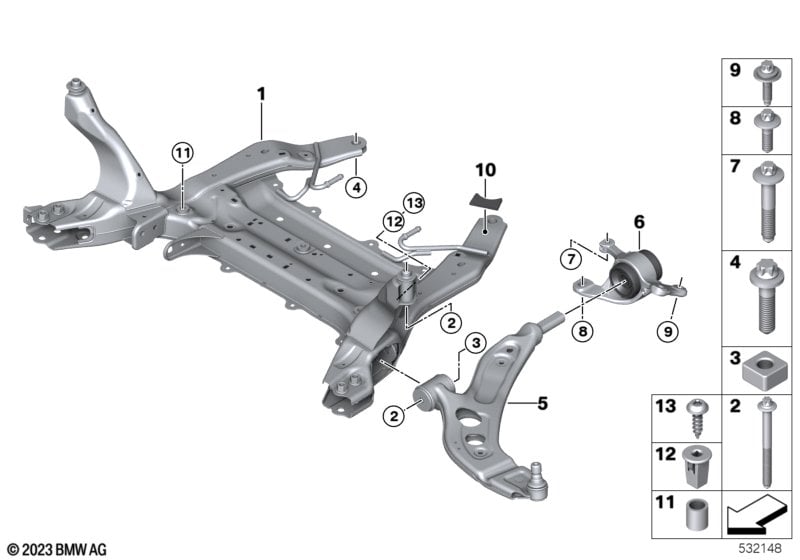

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31116869546 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 02 | ASA-Bolt | M12X1,5X10010.9 | 4 | 31106868038 | Shop at ECS Tuning | |||||
| 03 | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M14X1,5X57-10.9 | 2 | 07119908020 | Shop at ECS Tuning | |||||
| 05 | Control arm with rubber bushing, left | 1 | 31126879841 | Shop at ECS Tuning | ||||||
| 05 | Control arm with rubber bushing, right | 1 | 31126879842 | Shop at ECS Tuning | ||||||
| 06 | Wishbone bracket with rubber mount left | 1 | 12/2020 | 31126882843 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Wishbone bracket with rubber mount right | 1 | 12/2020 | 31126882844 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | ASA screw, self-threading | M12X1.5X30 | 1 | 12/2020 | 33306857402 | Shop at ECS Tuning | ||||
| -- | ASA screw | M10X40 10.9 | 2 | 12/2020 | 31106862545 | Shop at ECS Tuning | ||||
| -- | ASA screw, self-threading | M12X1,5X57 | 1 | 12/2020 | 07148836182 | Shop at ECS Tuning | ||||
| 06 | Bracket, wishbone with hydro mount, left | 1 | 31128831645 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 06 | Bracket, wishbone, with hydro mount, RT. | 1 | 31128831646 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ASA screw, self-threading | M12X1.5X30 | 1 | 33306857402 | Shop at ECS Tuning | |||||
| -- | ASA screw | M10X40 10.9 | 2 | 31106862545 | Shop at ECS Tuning | |||||
| -- | ASA screw, self-threading | M12X1,5X57 | 1 | 07148836182 | Shop at ECS Tuning | |||||
| 07 | ASA screw, self-threading | M12X1,5X57 | 2 | 07148836182 | Shop at ECS Tuning | |||||
| 08 | ASA screw, self-threading | M12X1.5X30 | 2 | 33306857402 | Shop at ECS Tuning | |||||
| 09 | ASA screw | M10X40 10.9 | 4 | 31106862545 | Shop at ECS Tuning | |||||
| 10 | Foam seal | 2 | 31116872462 | Shop at ECS Tuning | ||||||
| 11 | Threaded plug | M12X18 | X | 07129909338 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F55 Cooper Front axle support/wishbone?
- This technical diagram illustrates the Front axle support/wishbone within the Front Axle group for the MINI F55 Cooper produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Front axle support (Part #31116869546).
- Which models use the hardware listed in this Front axle support/wishbone?
- The hardware and components featured in the Front axle support/wishbone are specific to the MINI F55 Cooper produced during 2018. These technical specifications ensure that parts like the Front axle support (31116869546) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front axle support/wishbone assembly?
- Each item in the Front axle support/wishbone corresponds to the numbered list below the illustration. For the MINI F55 Cooper, you can identify the Front axle support by locating its position on the schematic, which then links to the official BMW part number 31116869546 for the Front Axle section.
