Guide support/spring pad/attaching parts for BMW MINI Cabrio F57 One (2020)

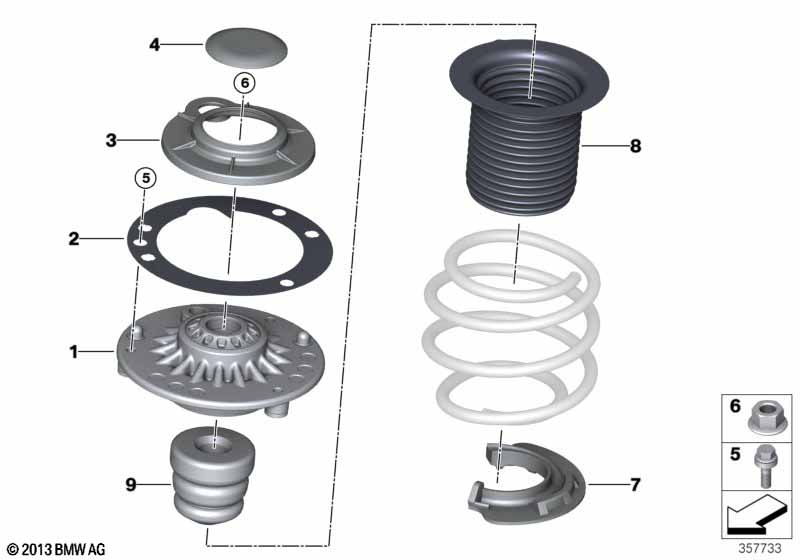

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electronic Damper Control (EDC) or Adaptive suspension When replacing old part numbers with new ones, always replace in pairs. |
S223A=Yes S223A=Yes |
|||||||||
| 01 | Support bearing for VDC | 2 | 31305A04C11 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Nut, self-locking | M14X1,5-05 ZNS3 | 2 | 34339806226 | Shop at ECS Tuning | |||||
| -- | Ring cover | 2 | 31306864551 | Shop at ECS Tuning | ||||||
| -- | Hex bolt with washer | M8X30-10.9 | 6 | 31306869931 | Shop at ECS Tuning | |||||
| For vehicles with Electronic Damper Control (EDC) and Adaptive suspension When replacing old part numbers with new ones, always replace in pairs. |
S223A=No S223A=No |
|||||||||
| 01 | Guide support | 2 | 31305A04C10 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Ring cover | 2 | 31306864551 | Shop at ECS Tuning | ||||||
| -- | Hex bolt with washer | M8X30-10.9 | 6 | 31306869931 | Shop at ECS Tuning | |||||
| 02 | Washer-gasket | 2 | 31306868240 | Shop at ECS Tuning | ||||||
| 03 | Ring cover | 2 | 31306864551 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Electronic Damper Control (EDC) |
S223A=No S223A=No |
|||||||||
| 04 | Covering cap | 2 | 31306864550 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X30-10.9 | 6 | 31306869931 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) or Adaptive suspension |
S223A=Yes S223A=Yes |
|||||||||
| 06 | Nut, self-locking | M14X1,5-05 ZNS3 | 2 | 34339806226 | Shop at ECS Tuning | |||||
| 07 | Spring pad lower | 2 | 31336860789 | Shop at ECS Tuning | ||||||
| 08 | Spring pad upper | 2 | 31336852465 | Shop at ECS Tuning | ||||||
| 09 | Additional shock absorber, front | 2 | 31336859766 | Shop at ECS Tuning | ||||||
