Output shaft front right for BMW MINI Cabrio F57 One (2020)

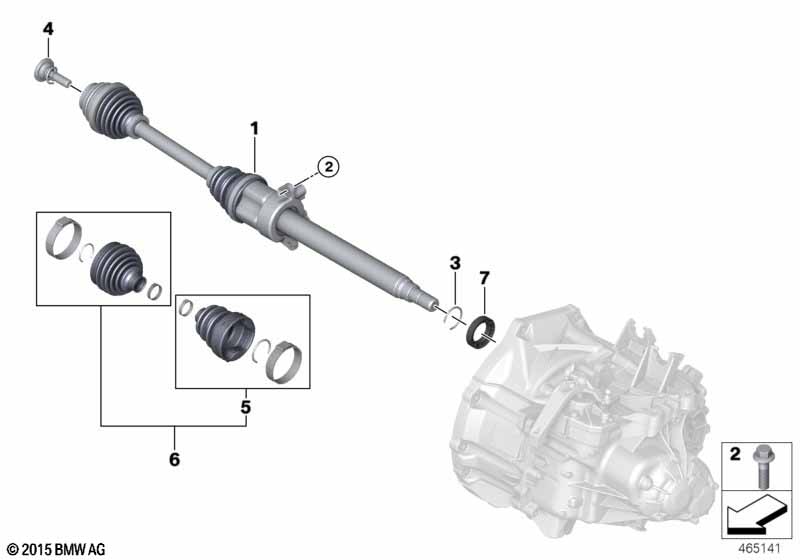

This Output shaft front right technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft right | 1 | 31605A2DFB8 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Shaft seal, output shaft | 1 | 23118651159 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M10X35-10.9-MKL | 2 | 22319494177 | Shop at ECS Tuning | |||||
| 04 | Collar screw with spring | M16X1,5X60-8.8 | 1 | 33406858534 | Shop at ECS Tuning | |||||
| 05 | Repair kit bellows, interior | 1 | 31608618547 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Lubricating grease Renolit CX-CVM 1 | 100G | 1 | 83192286016 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Output shaft right | X | 31608611928 | ENDED | Shop at ECS Tuning | |||||
| -- | Output shaft right | X | 31608643362 | ENDED | Shop at ECS Tuning | |||||
| -- | Output shaft right | X | 31608681524 | ENDED | Shop at ECS Tuning | |||||
| 06 | Repair kit, boot, inner / outer | 1 | 31608618548 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Lubricating grease Renolit CX-CVM 1 | 100G | 1 | 83192286016 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Output shaft right | X | 31608643362 | ENDED | Shop at ECS Tuning | |||||
| -- | Output shaft right | X | 31608681524 | ENDED | Shop at ECS Tuning | |||||
| 07 | Dustcover plate | 1 | 12/2014 | 31608648829 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
