Strut front VDC / mounting parts for BMW 2 Series F45 Active Tourer LCI 216d (2017)

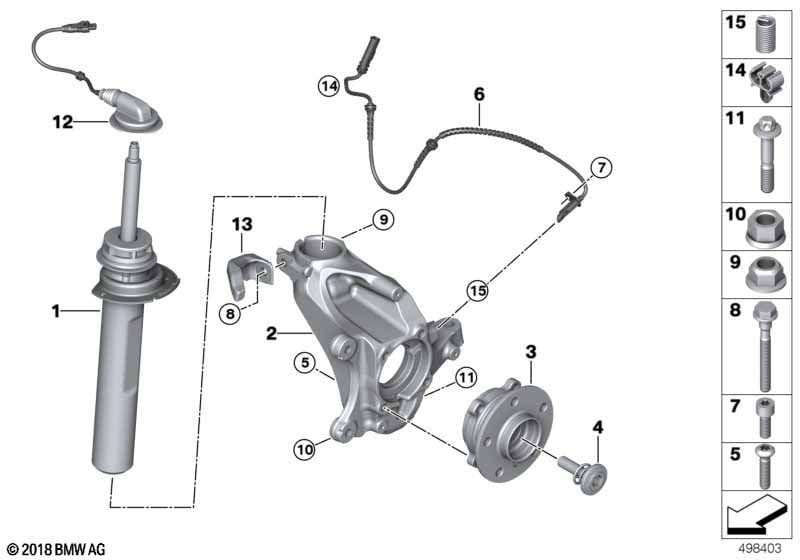

This Strut front VDC / mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Adaptive suspension or Electronic Damper Control (EDC) |
S223A=Yes S223A=Yes |
||||||||
| 01 | Spring strut front left VDC | 1 | 37106887793 | Shop at ECS Tuning | ||||||
| 01 | Spring strut front right VDC | 1 | 37106887794 | Shop at ECS Tuning | ||||||
| 02 | Carrier, left | 1 | 31216876645 | Shop at ECS Tuning | ||||||
| 02 | Carrier, right | 1 | 31216876646 | Shop at ECS Tuning | ||||||
| 02 | Pivot bearing, camber correction, left | PLUS | 1 | 31216876851 | Shop at ECS Tuning | |||||
| 02 | Swivel bearing, camber correction, right | PLUS | 1 | 31216876852 | Shop at ECS Tuning | |||||
| 02 | Pivot bearing, camber correction, left | MINUS | 1 | 31216876853 | Shop at ECS Tuning | |||||
| 02 | Swivel bearing, camber correction, right | MINUS | 1 | 31216876854 | Shop at ECS Tuning | |||||
| 03 | Wheel hub with bearing | M12X1,25 | 2 | 09/2024 | 31206874443 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Round collar screw | M12X1.25X45 | 8 | 09/2024 | 31206872920 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Collar screw with spring | M16X1,5X60-8.8 | 2 | 09/2024 | 33406858534 | Shop at ECS Tuning | ||||
| -- | Round collar screw | M12X1.25X45 | 8 | 09/2024 | 31206872920 | Shop at ECS Tuning | ||||
| 03 | Wheel hub with bearing | 2 | 31208845775 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Round collar screw | M12X1.25X45 | 8 | 31206872920 | Shop at ECS Tuning | |||||
| 04 | Collar screw with spring | M16X1,5X60-8.8 | 2 | 33406858534 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 05 | Round collar screw | M12X1.25X45 | 8 | 07/2024 | 31206872920 | Shop at ECS Tuning | ||||
| Attention Change in thread pitch | ||||||||||
| 05 | Round collar screw | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| Attention Change in thread pitch | ||||||||||
| For vehicles with Driving Assistant Plus or Park Assistent |
S5ATA=Yes S5DPA=Yes |
|||||||||
| 06 | DSC pulse generator, front | 2 | 07/2018 | 34526850767 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant Plus and Park Assistent |
S5ATA=No S5DPA=No |
|||||||||
| 06 | DSC pulse generator, front | 2 | 07/2018 | 34526850765 | Shop at ECS Tuning | |||||
| 07 | ISA screw | M6X16-8.8-ZNS3 | 2 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Hexagon screw with flange | M10X85 8.8 ZNS3 | 2 | 31306798530 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M10-10-ZNS3 | 2 | 07119905032 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Hex nut wiht flange | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 11 | ASA-Bolt | M10X55 | 2 | 31106876027 | Shop at ECS Tuning | |||||
| 12 | Protective cap with VDC wiring harness | 2 | 37106876863 | Shop at ECS Tuning | ||||||
| 14 | Cable clamp | 2 | 32731465257 | $0.84 | Shop at ECS Tuning | |||||
| 15 | Heli-Coil threaded insert | M6X12 | 1 | 33306786621 | Shop at ECS Tuning | |||||
