Guide support/spring pad/attaching parts for BMW 3 Series E36 M3 (1995)

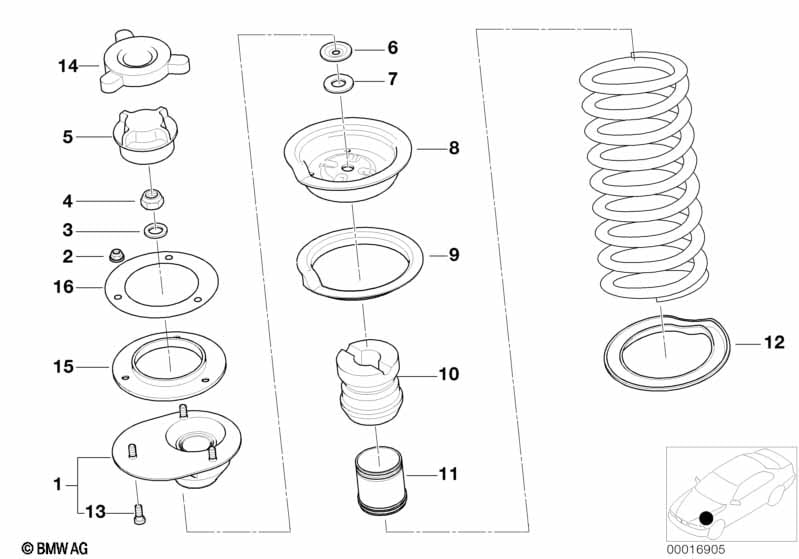

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide support | 2 | 31332228345 | $98.90 | Shop at ECS Tuning | |||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| For vehicles with Strut brace |
=Yes |
|||||||||
| 02 | Cap nut | 6 | 51712268565 | $8.61 | Shop at ECS Tuning | |||||
| 03 | Washer | A15 ZNS3 | 2 | 07119905829 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M14X1.5-8-ZN | 2 | 31321139422 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering cap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Dust protection collar | 2 | 31331110196 | $1.84 | Shop at ECS Tuning | |||||
| 07 | Support | 2 | 31332227342 | $9.91 | Shop at ECS Tuning | |||||
| 07 | Washer | D=55MM | 2 | 31306763966 | $4.24 | Shop at ECS Tuning | ||||
| 08 | Upper spring plate | 2 | 31332227348 | $10.19 | Shop at ECS Tuning | |||||
| 09 | Spring pad upper | 3MM | 2 | 31331128523 | $4.52 | Shop at ECS Tuning | ||||
| 10 | Additional shock absorber, front | 2 | 31332225377 | $19.12 | Shop at ECS Tuning | |||||
| 11 | Protection tube | 2 | 31331137932 | $2.25 | Shop at ECS Tuning | |||||
| 12 | Spring pad lower | 3MM | 2 | 31331124322 | $4.47 | Shop at ECS Tuning | ||||
| 13 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 14 | Protection cap | 2 | 31312227387 | $17.77 | Shop at ECS Tuning | |||||
| 16 | Washer-gasket | 2 | 31331094288 | $3.18 | Shop at ECS Tuning | |||||
