Frnt axle support,wishbone/tension strut for BMW 5 Series G30 520i (2019)

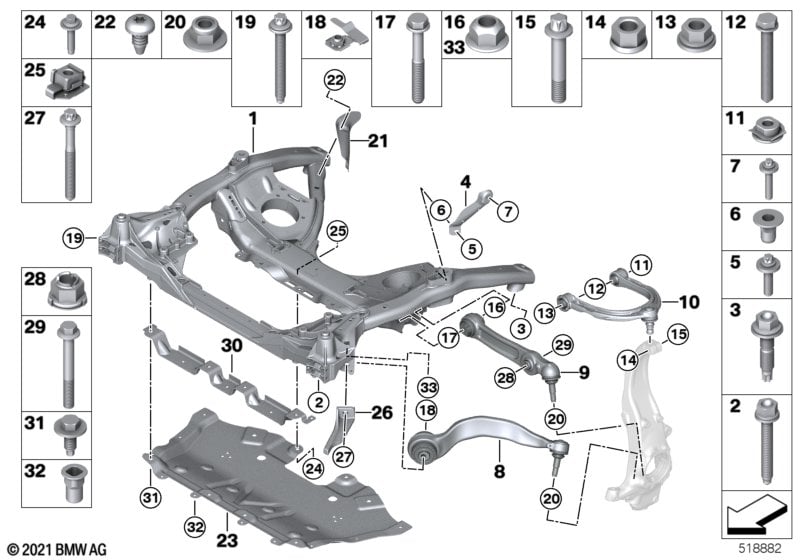

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31106861106 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M14X54X1.5 | 2 | 31106872063 | Shop at ECS Tuning | |||||
| 08 | Tension strut with rubber mounting, left | 1 | 31106861161 | Shop at ECS Tuning | ||||||
| 08 | Tension strut with rubber mounting, rght | 1 | 31106861162 | Shop at ECS Tuning | ||||||
| 09 | Wishbone, bottom, with rubber mount left | 1 | 03/2024 | 31106861177 | Shop at ECS Tuning | |||||
| 09 | Wishbone, bottom, with rubber mount left | 1 | 31108873861 | Shop at ECS Tuning | ||||||
| 09 | Wishbone, bottom,with rubber mount right | 1 | 03/2024 | 31106861178 | Shop at ECS Tuning | |||||
| 09 | Wishbone, bottom,with rubber mount right | 1 | 31108873862 | Shop at ECS Tuning | ||||||
| 10 | Wishbone with rubber bushing, upper | 2 | 31106861185 | Shop at ECS Tuning | ||||||
| 10 | A-arm camber adjustment, upper | +30MIN | 2 | 31126870025 | Shop at ECS Tuning | |||||
| 10 | A-arm camber adjustment, upper | -30MIN | 2 | 31126870026 | Shop at ECS Tuning | |||||
| 11 | Clip nut | M10-10 ZNS3 | 2 | 31106866023 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M10X85-U1-10.9 | 4 | 07119908592 | Shop at ECS Tuning | |||||
| 13 | Combination nut | M10-10 ZNS3 | 2 | 33306760585 | Shop at ECS Tuning | |||||
| 14 | Combination nut | M10-22H ZNS3 | 2 | 31106765451 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Torx screw | M10X59-10.9 ZNS | 2 | 31106789333 | $0.90 | Shop at ECS Tuning | ||||
| 16 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M14X1,5X110 | 2 | 33176760342 | $3.50 | Shop at ECS Tuning | ||||
| 18 | Clip nut, right | 1 | 04/2022 | 31106872426 | ENDED | Shop at ECS Tuning | ||||
| 18 | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 04/2022 | 33306760349 | $1.33 | Shop at ECS Tuning | |||
| For vehicles with Equipment-specific control |
S8R2A=No |
|||||||||
| 19 | ASA bolt with washer | M14X127-10.9 | 1 | 33316767586 | $6.31 | Shop at ECS Tuning | ||||
| Screw connection tension strut right | ||||||||||
| 20 | Hexagon nut with collar | M16X1.5 ZNNIV | 4 | 07146875114 | Shop at ECS Tuning | |||||
| 21 | Heat resistant plate | 1 | 31146861394 | Shop at ECS Tuning | ||||||
| 22 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 23 | Underride portection, front | 1 | 04/2017 | 31146884048 | Shop at ECS Tuning | |||||
| For vehicles with Executive Drive Pro |
S2VSA=Yes |
|||||||||
| 23 | Underride protection | 1 | 04/2017 | 31146868619 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 24 | Hex bolt with washer | M8X40 | 6 | 31106870648 | Shop at ECS Tuning | |||||
| 25 | Cage nut | 4 | 31106870940 | Shop at ECS Tuning | ||||||
| For vehicles with Equipment-specific control |
S8R2A=No |
|||||||||
| 27 | ASA bolt with washer | M14X127-10.9 | 1 | 33316767586 | $6.31 | Shop at ECS Tuning | ||||
| Screw connection tension strut left | ||||||||||
| 28 | Combination nut | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 29 | Hexagon collar screw | M14X1,5X95 10.9 | 2 | 07119906100 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 30 | Holder for engine guard front | 1 | 04/2017 | 31106883284 | Shop at ECS Tuning | |||||
| 31 | Hex bolt | M6X20-8.8 | 3 | 07119907898 | Shop at ECS Tuning | |||||
| 32 | Blind rivet nut, flat headed | M6 | 3 | 07147311614 | Shop at ECS Tuning | |||||
| 33 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
