Headlight vertical aim control sensor for BMW 5 Series G30 520dX (2020)

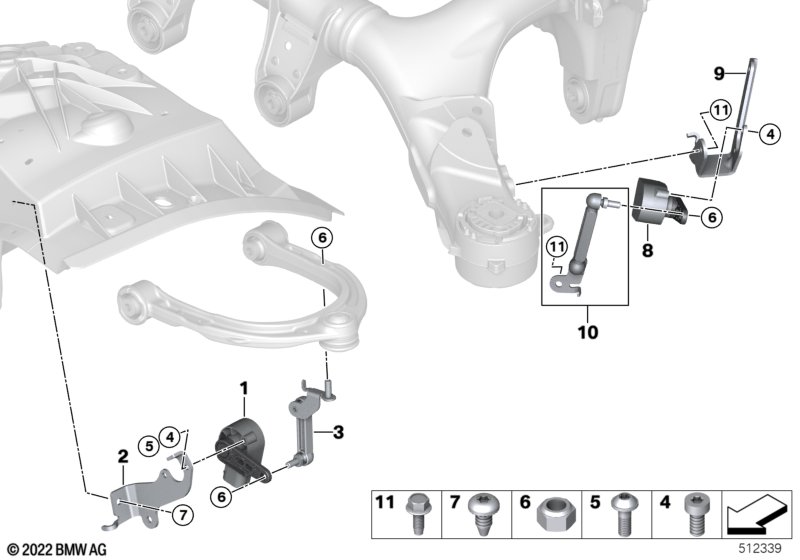

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Level sensor | 1 | 37146870000 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension or Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 01 | Level sensor | 1 | 37146870000 | Shop at ECS Tuning | ||||||
| 02 | Left ride height sensor bracket | 1 | 37146870965 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 02 | Right ride height sensor bracket | 1 | 37146870970 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 02 | Right ride height sensor bracket | 1 | 37146870970 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 02 | Right ride height sensor bracket | 1 | 37146870970 | Shop at ECS Tuning | ||||||
| 03 | Control rod, left | 1 | 37146867905 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 03 | Control rod, right | 1 | 37146867906 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 03 | Control rod, right | 1 | 37146867906 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 03 | Control rod, right | 1 | 37146867906 | Shop at ECS Tuning | ||||||
| 04 | ISA screw | M5X10 | 2 | 07129904491 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 04 | ISA screw | M5X10 | 4 | 07129904491 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 04 | ISA screw | M5X10 | 4 | 07129904491 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 04 | ISA screw | M5X10 | 4 | 07129904491 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 3 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 07 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 07 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 07 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 08 | Level sensor | 1 | 37146870000 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 08 | Level sensor | 1 | 37146870000 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 08 | Level sensor | 1 | 37146870000 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 08 | Level sensor | 1 | 37146870000 | Shop at ECS Tuning | ||||||
| 09 | Left ride height sensor bracket | 1 | 37146869137 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension or Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 09 | Right ride height sensor bracket | 1 | 37146869138 | Shop at ECS Tuning | ||||||
| 10 | Control rod, left | 1 | 37146873097 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 10 | Control rod, right | 1 | 37146873098 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 10 | Control rod, right | 1 | 37146873098 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 10 | Control rod, right | 1 | 37146873098 | Shop at ECS Tuning | ||||||
| 11 | Screw self-tapping | M6X16MM | 2 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=Yes |
|||||||||
| 11 | Screw self-tapping | M6X16MM | 2 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=Yes S2VAA=No |
|||||||||
| 11 | Screw self-tapping | M6X16MM | 2 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" |
S223A=No S2VAA=Yes |
|||||||||
| 11 | Screw self-tapping | M6X16MM | 2 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 520dX Headlight vertical aim control sensor?
- This technical diagram illustrates the Headlight vertical aim control sensor within the Front Axle group for the 5 Series G30 520dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Level sensor (Part #37146870000).
- Which models use the hardware listed in this Headlight vertical aim control sensor?
- The hardware and components featured in the Headlight vertical aim control sensor are specific to the 5 Series G30 520dX produced during 2020. These technical specifications ensure that parts like the Level sensor (37146870000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight vertical aim control sensor assembly?
- Each item in the Headlight vertical aim control sensor corresponds to the numbered list below the illustration. For the 5 Series G30 520dX, you can identify the Level sensor by locating its position on the schematic, which then links to the official BMW part number 37146870000 for the Front Axle section.
