Output shaft front left for BMW MINI Countryman F60 One (2020)

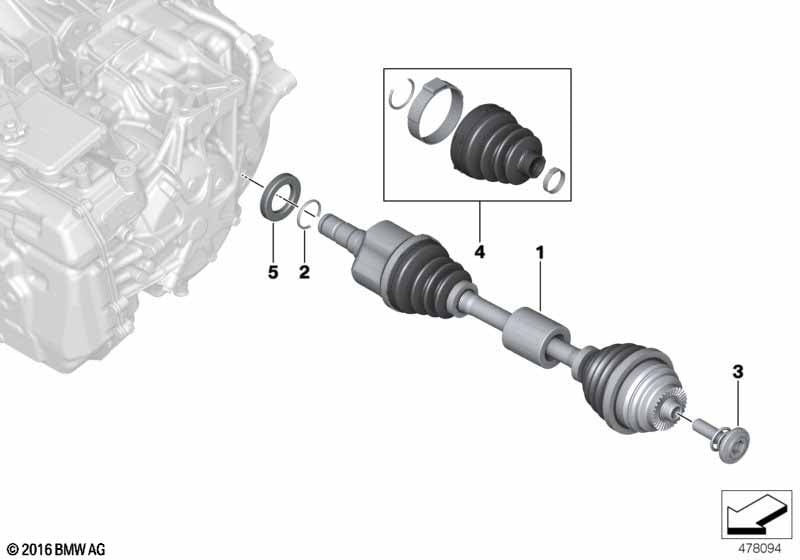

This Output shaft front left technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Steptronic with twin-clutch gearbox |
S2TFA=Yes |
|||||||||
| 01 | Output shaft left | 1 | 31605A2E043 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Shaft seal, output shaft | 1 | 23118651159 | Shop at ECS Tuning | ||||||
| 02 | Lock Ring | 1 | 31605A25FE9 | Shop at ECS Tuning | ||||||
| 03 | Collar screw with spring | M16X1,5X60-8.8 | 1 | 33406858534 | Shop at ECS Tuning | |||||
| For vehicles with Steptronic with twin-clutch gearbox |
S2TFA=Yes |
|||||||||
| 04 | Repair kit bellows, interior | 1 | 07/2021 | 31608488569 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lubricating grease Renolit CX-CVM 1 | 100G | X | 07/2021 | 83192286016 | Shop at ECS Tuning | ||||
| 05 | Dustcover plate | 1 | 31607934575 | Shop at ECS Tuning | ||||||
