Front axle support, 4-wheel for BMW 3 Series G20 Sedan M340iX (2022)

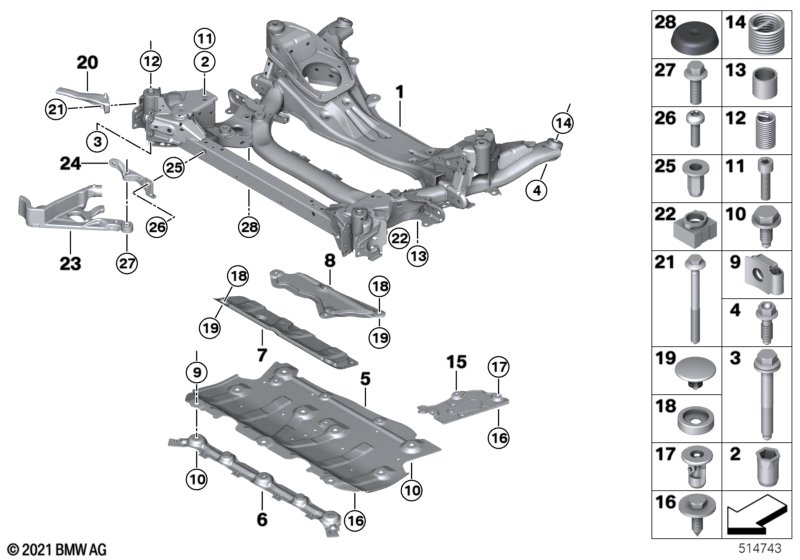

This Front axle support, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | AWD | 1 | 31108841116 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover for steering assembly, front left | AWD | 1 | 51719627321 | Shop at ECS Tuning | |||||
| -- | Cover for steering assembly, front right | AWD | 1 | 51719627322 | Shop at ECS Tuning | |||||
| -- | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 01 | Front axle support | AWD | 1 | 31108841116 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 01 | Front axle support | AWD | 1 | 31108841116 | Shop at ECS Tuning | |||||
| 02 | Blind rivet nut, flat headed | M8 | 4 | 07147132312 | Shop at ECS Tuning | |||||
| 03 | Multi-purpose bolt ASA | M12X1,5X90 | 4 | 07146885922 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M14X42X1,5 | 2 | 07146886209 | Shop at ECS Tuning | |||||
| 05 | Structural reinforcement panel | 1 | 31106878580 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 06 | Holder for engine guard front | 1 | 31146884361 | Shop at ECS Tuning | ||||||
| 07 | Absorber for thrust field front | 1 | 31106885881 | Shop at ECS Tuning | ||||||
| 08 | Absorber for thrust field rear | 1 | 31106885882 | Shop at ECS Tuning | ||||||
| 09 | Clip nut | M10-10 ZNS3 | 3 | 07146887266 | Shop at ECS Tuning | |||||
| 10 | Multi-purpose bolt ASA | M10X25 ZNS3 | 9 | 07146885805 | Shop at ECS Tuning | |||||
| 11 | ISA screw | M8X30-8.8-ZNS3 | 4 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| 12 | Heli-Coil threaded insert | M12X1,5X30 | 4 | 33306780501 | Shop at ECS Tuning | |||||
| 13 | Threaded plug | M10X10 | 6 | 07129909277 | Shop at ECS Tuning | |||||
| 14 | Helicoil thread insert | M14X1.5X14 | 2 | 33326869611 | Shop at ECS Tuning | |||||
| 15 | Covering cap left | 1 | 31106886193 | Shop at ECS Tuning | ||||||
| 15 | Covering cap right | 1 | 31106886194 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | TS5X20 SW8 D=22 | 6 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Expanding nut | L=18.4, DMAX=18 | 6 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Hexagon screw with flange | M12X136,10.9 | 2 | 31106885777 | Shop at ECS Tuning | |||||
| 22 | Cage nut | M12X1,5-10 ZNS3 | 2 | 31106874585 | Shop at ECS Tuning | |||||
| 22 | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 23 | Part not available separately | 2 | 00000000000 | Shop at ECS Tuning | ||||||
| 24 | Part not available separately | 2 | 00000000000 | Shop at ECS Tuning | ||||||
| 25 | Part not available separately | 4 | 00000000000 | Shop at ECS Tuning | ||||||
| 26 | Part not available separately | 4 | 00000000000 | Shop at ECS Tuning | ||||||
| 27 | Part not available separately | 4 | 00000000000 | Shop at ECS Tuning | ||||||
