Final drive (front axle) for BMW 3 Series G20 Sedan 330eX (2022)
This Final drive (front axle) technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Final drive (front axle) | I=3,23 | 1 | 31508619486 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lock Ring | D=22,4 | 2 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| -- | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 01 | Final drive (front axle) | I=3,23 | 1 | 02/2024 | 31508619487 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Lock Ring | D=22,4 | 2 | 02/2024 | 33131214961 | $0.29 | Shop at ECS Tuning | |||
| -- | Assembly ring | 1 | 02/2024 | 31537502681 | $9.98 | Shop at ECS Tuning | ||||
| 02 | Shaft seal | 44X69X10/15 | 1 | 31527507697 | $8.59 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 03 | Dust plate inner | 1 | 31528847176 | Shop at ECS Tuning | ||||||
| 04 | dustcover plate, large | 1 | 31511428659 | $3.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 06 | Repair kit output radial shaft seal | 44X67 | 2 | 31508860349 | Shop at ECS Tuning | |||||
| 07 | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 08 | O-ring | D=39MM | 2 | 31511213527 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Screw, outside Torx with washer | M12X1,5X55-10.9 | 3 | 31517589001 | $2.27 | Shop at ECS Tuning | ||||
| 10 | Screw, outside Torx with washer | M12X1,5X105 | 1 | 31517589002 | $2.47 | Shop at ECS Tuning | ||||
| 11 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 12 | Supporting bracket | 1 | 31508639382 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Lock Ring | D=22,4 | 1 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| -- | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M8X25 ZNS3 | 4 | 07119904793 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Breather pipe | 1 | 33108842550 | Shop at ECS Tuning | ||||||
| 15 | Hypoid axle oil G5 | 0,5L | X | 03/2020 | 83222471487 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330eX Final drive (front axle)?

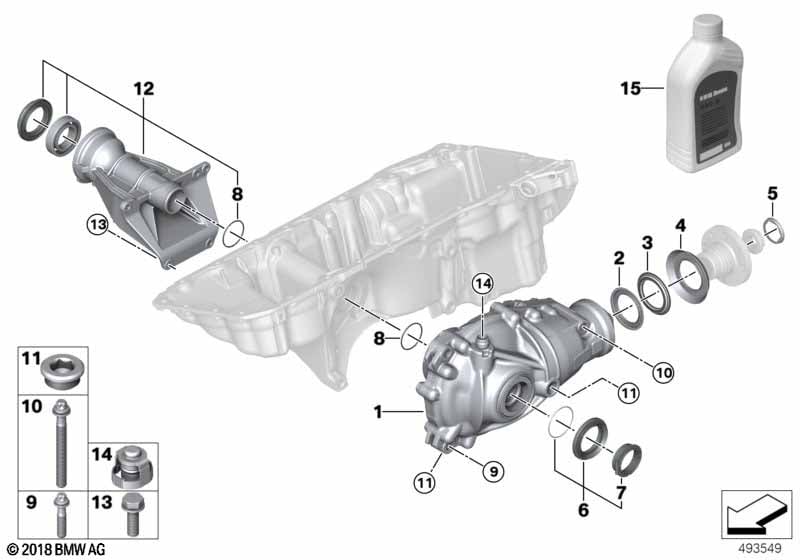

- This technical diagram illustrates the Final drive (front axle) within the Front Axle group for the 3 Series G20 Sedan 330eX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Final drive (front axle) (Part #31508619486).
